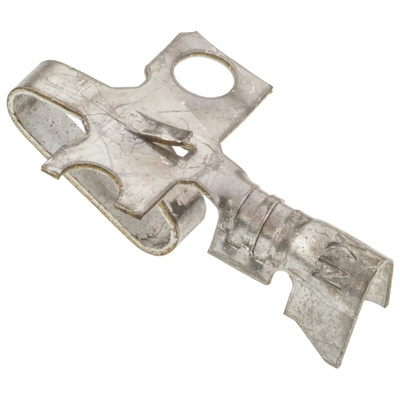

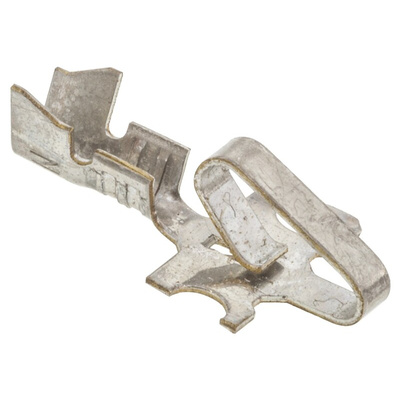

08-50-0105, Molex KK 396 Series Female Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

18 to 26 AWG Crimp, Female, Connector Contacts

Molex, the 2478 and 2578 Series connector contacts feature a dual cantilever design. The square post contact area keeps contact with the male pin header through spring-like contact. A locking tang prevents terminal back out once loaded in housing.

Features:

• Wire gauge of 18 to 26 AWG
• Brass or Phosphor Bronze material
• Tin or Gold Contact Plating

Applications:

• Automotive Industry
• Consumer Electronics
• Data/Computing
• Medical Industry
• Communications
• Networking

Molex Female Crimp Terminal, 18 to 24AWG, 6mΩ - 2478 Series - 08-50-0105

Reliably connect your wires with this female crimp terminal from Molex. It features a dual cantilever design to give you multiple contact points, while the locking header secures the terminal in its housing for a dependable connection. The brass contact material is tin-plated to maximise conductivity and reduce corrosion. You'll find wires are quick and easy to clamp in place and a ribbed surface prevents them from loosening over time. Choose this unit to connect power supplies in portable medical and consumer devices.

Features & Benefits

• Takes wire sizes 0.2 to 0.8mm² and 24 to 18AWG (American Wire Gauge) for flexibility
• Operating temperature range of 0°C to +50°C for use in a range of industrial environments
• Low-halogen material decreases the risk of toxic fumes when heated or set on fire
• Supplied in a pack of 100, so you always have one to hand

Applications

• Automotive Industry
• Communications and networking
• Medical equipment
• Consumer electronics

What connector housings can I use with this crimp terminal?

This female crimp terminal is compatible with KK connector systems and KK 396 series connector modules such as the Molex single-row female housing unit (679-5066).

3.96mm Molex KK Range

Crimp Terminal 0.156 centres 18 to 24 awg Drawing

Product Specification

08-50-0105 - Part Details
