08-50-0031, Molex KK Series Female Crimp Terminal, 30AWG Min, 22AWG Max, Контакты

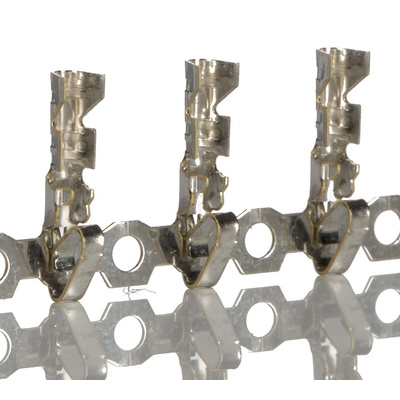

Molex KK Female Crimp Terminal Contact

Out of Molex’s product line comes the Molex KK Female Crimp Terminal Contact. Built out of brass and plated with tin, this premium build crimp terminal is an essential solution for a multitude of electrical products.
Being a part of Molex’s KK interconnect system, these products cover a range of flexible components designed for power and signal applications. The KK 254 connectors are used in board-to-board and wire-to-board connections, have a wire size from 22-30 AWG (American wire gauge) and have a 4A current rating, a pitch of 2.54mm.

Features

Molex KK 254 connectors are ideal for automotive, medical and consumer industries. Applications include:

• Interior automotive lighting


• Fire alarms


• Gaming devices


• Home security


• White goods


• Data and communications

Note

For Extracton Tool see 663-4246

Approvals

UL (E29179) and CSA (LR 19980)

Molex Crimp Terminal, Tin Contact Plating, 30 to 22AWG - 4809 Series - 08-50-0031

Achieve connections you can depend on with this cat-ear-style crimp terminal from Molex. The spring-like design on the mating section gives you two high-pressure contact points to achieve reliable resistance to vibration. Brass construction ensures the unit's strong yet malleable enough to give you a dependable compression fit. As the surface has been hot-tin dipped to boost corrosion resistance, this is a durable component for your electronic and electrical devices.

Features & Benefits

• Accepts commonly used wire sizes between 30 and 22AWG for flexibility
• No need for soldering, so building circuits is quick and easy, with no heat needed

Applications

• Domestic appliances
• In-car systems
• Charging stations
• HVAC equipment
• Industrial networks

What's the pitch of this terminal?

It has a 2.54mm pitch, which is a standard size that's compatible and interchangeable with a wide range of components and devices.

Anti Fish Hooking Terminal KK Drawing

Datasheet

Product Specification Sheet - 08-50-0031
