2759 Series Crimp Terminals
KK 254 2759 Series crimp terminal contacts are for use with KK 2695 Series housings and KK 5051 Series housings on 22-30 AWG conductors. Suitable for use in a range of applications these connectors are robust and reliable for assurance when used in your design.
2759 Series Crimp Terminal contacts include:
• 670-2263 Hot Tin Dipped, on reel
• 170-7138 Hot Tin Dipped, bulk reel
• 172-9178 Hot Tin Dipped, loose
• 670-2266 Select Gold with Nickel overall, on reel
• 170-7139 Select Gold with Nickel overall, bulk reel
• 678-3149 Select Gold with Nickel overall, loose
• 670-2276 Select Gold with Gold Flash overall, on reel
• 170-7141 Select Gold with Gold Flash overall, bulk reel
• 678-3155 Select Gold with Gold Flash overall, loose
Appropriate tooling for 2759 Series Crimp Terminal contacts:
For Crimp Tool see stock number 663-4246
For Insertion Tool see stock number 710-6528
For Extraction Tool see stock number 173-3278

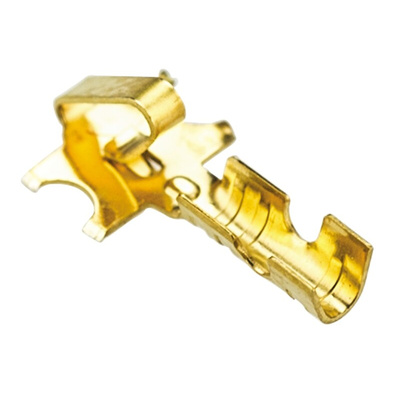

Molex Crimp Terminal, Accommodates 30 to 22AWG, Gold-Plated Contacts - KK-254 Series - 08-56-0110
Need your PCB connection to stay put? Reach for this crimp terminal from Molex. Its compression termination method achieves a tight grip on stranded wires, ensuring a reliable connection while keeping contaminants out. You'll get a signal boost thanks to the reliable conductivity of the terminal's gold-plated brass contacts. A low-halogen design means harmful fumes are kept to a minimum even at high temperatures.
Features & Benefits
• Weighs just 0.064g to put minimal strain on your setup
• Fits wire sizes between 30 and 22AWG for wide compatibility with commonly used conductors
• Performs reliably in industrial settings thanks to a broad operating temperature range of 0°C to +75°C
Applications
• Food and beverage production
• Robotics systems
• HVAC equipment
What gender is this crimp terminal?
The unit is female-gendered, so it's a socket-style device suitable for linking with male PCB connectors.
Техническая спецификация
