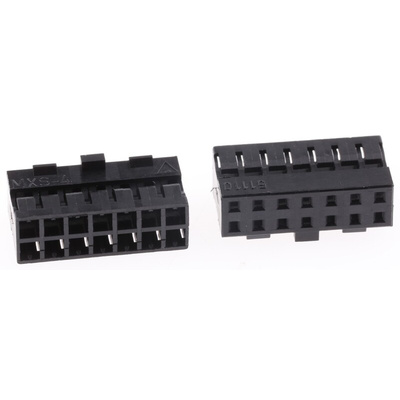

51110-1451, Molex, Milli-Grid Female Connector Housing, 2mm Pitch, 14 Way, 2 Row, Корпус разъема

Molex 2.00 mm Milli-Grid Receptacle Crimp Housings - 51110 Series

51110 series dual row Milli-Grid high density receptacle crimp housings with a 2.00 x 2.00 mm grid pattern for design flexibility. The shrouded design of these 2.00 mm Milli-Grid crimp housings protects the contacts from damage. These Milli-Grid connector housings are available with a centre polarization key that engages with a centre polarisation slot on the mating header to prevent mismating. Versions of these crimp housings are also available with a centre locking ramp and/or side latches for a secure mating connection to the header
Part numbers 51110-xx50 have a plain design
Part numbers 51110-xx51 ((14-32 position) have a centre polarization key and side latches
Part numbers 51110-xx51 (8-12 position) have a centre polarization key
Part numbers 51110-xx60 have a centre locking ramp

Features and Benefits

• High density 2.00 x 2.00 mm grid design
• Shrouded for contact protection
• Centre polarization key to prevent mismating
• Centre locking ramps and side latches for secure mating connection

Applications

These Milli-Grid connectors are suitable for a wide range of wire to board signal applications. Typical applications include printers, fax machines and copiers, servers, routers and switches, automotive audio and GPS, security systems and alarms, set-top boxes and digital media players

Molex Connector Housing, PET Construction, -40°C to +105°C Operating Temperature - 51110 Series - 51110-1451

Keep your crimp terminals securely linked to a PCB with this connector housing from Molex. It has two rows and 14 contacts, meaning you can make multiple connections from a unit that measures just 14.2mm in length. The contacts have a 2mm pitch, making this a space-saving pick. As it's made from PET, the unit provides insulation to shield you from electric shocks. This material is also heat-resistant, ensuring long-lasting performance in harsh environments.

Features & Benefits

• Polarised terminals ensure accurate connections and prevent damage to your ports
• Straight body orientation for convenient mounting on a PCB
• Light weight of 291g to minimise strain on your equipment

Applications

• Household appliances
• Medical devices
• Military technology

What wire sizes can I use with this housing?

This connector housing accommodates wire sizes ranging between 30 and 24AWG, making it a versatile option.

Molex 2.0 mm Milli-Grid Interconnection System

The Milli-Grid connector system is a high density connector system based on a 2 x 2 mm grid pattern offering design flexibility for board to board and cable to board applications. The Milli-Grid family of connectors consists of shrouded and unshrouded headers, single and dual row receptacles, connector housings and crimp terminals

2mm Grid Wire To Board Connector Crimp Receptacle Housing Drawing

Datasheet

Line Drawing

Application Specification - 5Milli-Grid Connector System
