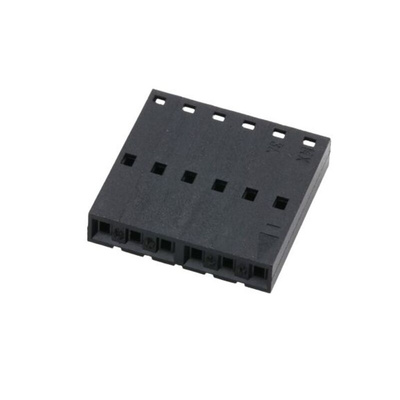

50-57-9006, Molex, SL Female Connector Housing, 2.54mm Pitch, 6 Way, 1 Row, Корпус разъема

Molex SL 70066 Series Connector Housings

The Stackable Linear (SL) 70066 Series of 2.54mm pitch receptacle connector housings from Molex have been designed for low power and wire to board and wire to wire applications across a number of different industries. The SL range offers both flexibility in the design and configuration fittings and can be used in high vibration environments.

Features and Benefits

• 2.54mm pitch
• 2 to 25 circuits
• Dual and single row housing
• High temperature headers enable the use of reflow ovens in fixing headers to the PCB
• Black in colour
• Stackable housing

Note

For Version D see stock number 670-3890

Molex Connector Housing, Stackable, 3A Maximum Current Per Contact - 70066 Series - 50-57-9006

Join terminals to your PCB the easy way using this connector housing from Molex. It's a single-row unit with six contacts – just slot in a pre-crimped wire to make a speedy connection. To keep them safe from contaminants, the terminals are protected by highly rigid and chemical-resistant PET material. With a maximum current per contact of 3A, this is an ideal pick for low-power setups. A wide operating temperature range of -40°C to +105°C means it's ruggedly built and suitable for challenging installations.

Features & Benefits

• Straight body orientation for convenient front-facing installation
• Compact pitch of 2.54mm to handle small conductors
• Stackable to give you design flexibility
• Low 0.28g weight minimises strain on the connector

Applications

• Lighting fixtures
• Telecommunications networks
• Consumer electronics
• Security systems

Is this housing electrically safe?

Yes, thanks to its robust polyester housing it has excellent resistance to electrical hazards to protect against shocks.

2.54mm Molex C-Grid/SL Series

Housing Connector (2.54)/.100 grid Stackable Single Row Drawing

Datasheet

Line Drawing
