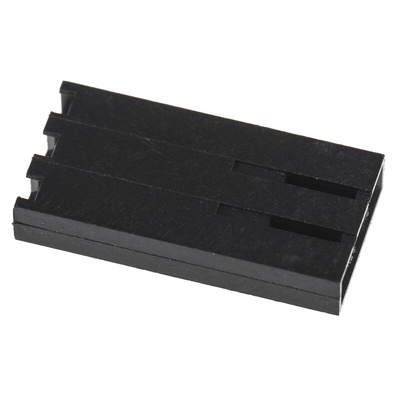

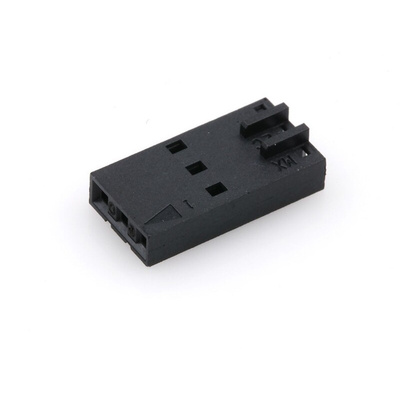

50-57-9303, Molex, SL Female Connector Housing, 2.54mm Pitch, 3 Way, 1 Row, Корпус разъема

Crimp Housings, 70066 D Series

Version D is Polarized with back ribs

Use with 70058 and 70021 Series terminals typical stock numbers 670-6293 and 670-6262 respectively

Note

Versions A, C, G, H and N can be found from typical stock number 679-5906

Molex SL Series Connector Housing, PET, Straight - 50-57-9303

This connector housing from Molex offers a reliable solution for various industries, including automation, electronics, electrical, and mechanical. The straight orientation and female design make it versatile for different applications. With a durable PET housing material, this connector ensures longevity and stable performance. The compact size and single row design with 3 contacts make it ideal for space constrained installations.

Features & Benefits

• Straight orientation for easy cable connections
• Female gender for versatile applications
• PET housing material for durability and longevity
• Single row design with 3 contacts for space constrained installations
• Cable mount for flexible mounting options
• Suitable for use with SL connectors for seamless integration

Applications

• Ideal for signal transmission in wire-to-board applications
• Perfect for automation systems requiring reliable connections
• Suitable for electronic devices where space is limited
• Used in electrical panels for secure circuit connections

Can it be used with other connector types?

Yes, this connector housing is compatible with a variety of SL connectors for seamless integration.

Will it withstand harsh environmental conditions?

The PET housing material ensures durability and can withstand a wide temperature range, making it suitable for different environments.

Is it easy to install?

Yes, the cable mount design allows for easy installation in various applications.

Can it be used with both AC and DC circuits?

Yes, the connector housing is suitable for use with both AC and DC currents, making it versatile for different electrical systems.

Will it work with different wire gauges?

Yes, the connector housing is designed to work with various wire gauges, providing flexibility in installations.

2.54mm Molex C-Grid/SL Series

Housing Connector (2.54)/.100 grid Stackable Single Row Drawing

Datasheet

Line Drawing
