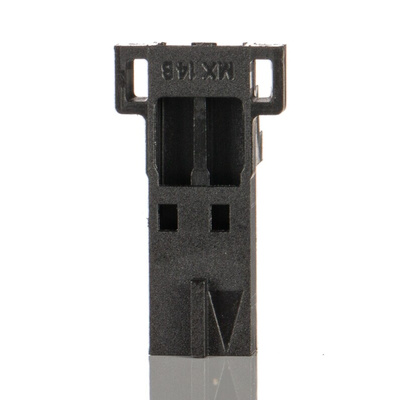

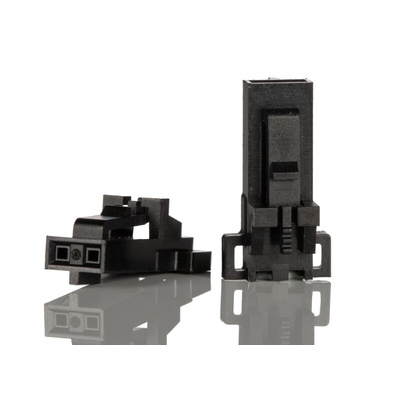

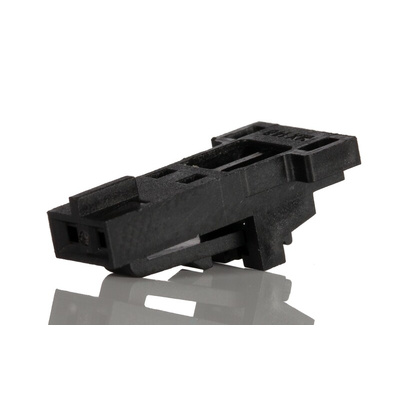

50-57-9702, Molex, SL Female Connector Housing, 2.54mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex Connector Housing, Straight, 3A Current Rating - SL Series - 50-57-9702

Need a reliable way to attach your pre-crimped terminals to a PCB? Turn to this connector housing from Molex. It has two circuits, which means it can house two conductors at the same time, so it's a versatile option. The unit also helps protect the sensitive ends of your conductors from dirt and moisture contaminants. Its straight body orientation let you easily mount it in front-facing panels.

Features & Benefits

• Current rating of 3A for use in low-power systems
• Light weight of 0.215g so it won't strain your PCB
• Polyester alloy body is resistant to chemicals and heat for durability
• Pitch size of 2.54mm to accommodate small wires

Applications

• Machine prototypes
• IT networks
• Industrial automated systems
• Electrical engineering

What's the temperature rating of this connector housing?

This housing has an operating temperature range between -40°C and +105°C so you can rest assured that it can withstand demanding conditions.

2.54mm Molex C-Grid/SL Series

Housing SL Crimp For Terminal Posistion Assurance Drawing

Datasheet

Line Drawing

Product Specification Sheet - Sl Stackable Linear
