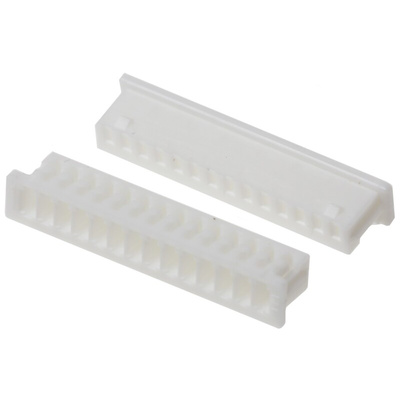

51021-1400, Molex, PicoBlade Female Connector Housing, 1.25mm Pitch, 14 Way, 1 Row, Корпус разъема

Molex PicoBlade Series 51021 Connector Housings

The PicoBlade 51021 Series can be used across a number of applications such as automotive, industrial, consumer, computing and medical. The PicoBlade connector system is offered in wire to board and wire to wire options and is ideal for saving PCB space.

Features and Benefits

• Single row, wire to wire and wire to board housings
• Straight friction locks provide secure mating
• Compact design
• 1.25 mm pitch
• 2 to 15 circuits
• The crimp terminals are polarised to prevent incorrect insertion

Standards

UL (E29179); CSA (LR19980)

Molex Connector Housing, 1A Maximum Current, -40°C to +85°C Operating Temperature Range - 51021 Series - 51021-1400

Bring crimp terminals and PCBs together with this connector housing from Molex. It's a female connector without 14 contacts arranged in a single row to support efficient wire organisation in your equipment. A pitch size of 1.25mm keeps conductors from touching each other, preventing short circuits while maintaining data signal integrity. Its PBT body resists corrosion and impact, making this a suitable option for challenging industrial environments. You can use the versatile unit with products in the Picoblade series for wire-to-wire and wire-to-board applications.

Features & Benefits

• Performs reliably in temperatures of -40°C to +85°C
• Polarised design to prevent incorrect mating
• Straight body orientation for simple mounting on a PCB

Applications

• Data centres
• Telecommunications networks
• Industrial control panels

Is this connector housing flame-resistant?

Yes, it stops burning in less than 60 seconds, so doesn't support the spread of flames in the event of a fire.

1.25mm Wire to Board - Molex PicoBlade™

1.25 Wire To Board Conn.Receptacle Housing Drawing

Datasheet

Line Drawing

Application Specification - 51021-1400
