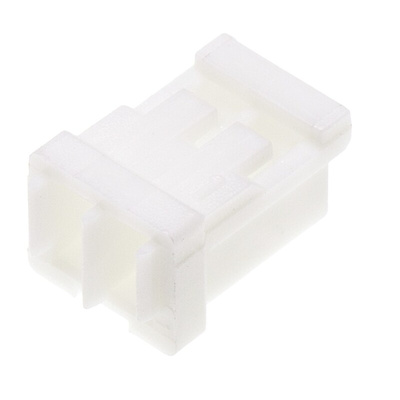

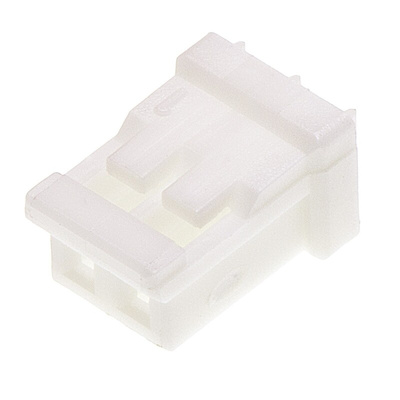

87439-0200, Molex, Pico-SPOX Female Connector Housing, 1.5mm Pitch, 2 Way, 1 Row, Корпус разъема

Housings, 87439 Series

Mates with 87437 and 87438 Series headers typical stock number 670-0901, uses 87421 Series terminals typical stock number 670-6445

Molex Connector Housing, Nylon Material, 2.5A Maximum Current Rating - 87439 Series - 87439-0200

To secure electrical connections in tight spaces, reach for this female connector housing from Molex. Its compact 1.25mm pitch and single-row, straight-bodied design saves room when you're making wire-to-board connections in busy setups. The unit has two contacts, each taking on a maximum current of 2.5A. This makes it suited to the higher current configurations used in manufacturing and computing. As the housing is made from sturdy nylon, it's well-insulated and impact-resistant, so you get a long product life.

Features & Benefits

• Polarised to mating points for error-free connections
• Broad operating temperature range of -55° to +105°C for use in industrial conditions

Applications

• Consumer electronics
• Pharmaceutical research laboratories
• Telecomms installations

Is this connector housing flame-retardant?

Yes, the unit is designed to stop burning in under 10 seconds and is made with low-halogen materials to minimise fumes in the event of a fire.

1.5mm Wire to Board - Molex Pico-SPOX

Molex's Pico-Spox connector system is an ideal solution for higher current wire-to-board configurations in tight packaging applications. The system is rated for 3A max. using AWG #24 wires in a compact 1.50mm pitch design.

Datasheet

Datasheet

Line Drawing
