50058-8100, Molex PicoBlade Series Female Crimp Terminal, 32AWG Min, 28AWG Max, Контакты

Molex PicoBlade Crimp Contacts - 50058, 50079 and 50125 Series

Crimp pin and receptacle contacts for use in PicoBlade receptacle and plug housings. These PicoBlade crimp contacts feature a two-point contact design which provides a reliable electrical connection in low current, low voltage and high vibration conditions. The contacts are tin plated and are available for use with wire size ranges of 26 AWG to 28 AWG and 28 AWG to 32 AWG.

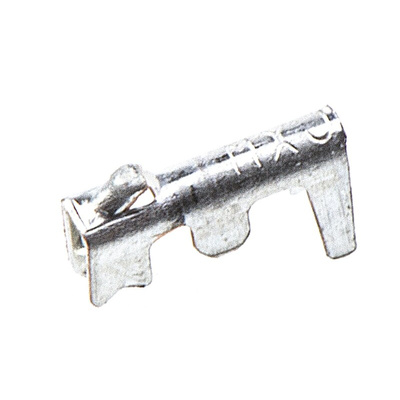

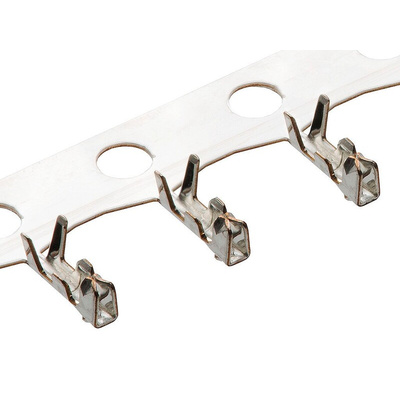

Molex Crimp Terminal, Tin Contact Plating, 32 to 28AWG - PicoBlade Series - 50058-8100

For a connection you can count on, choose this crimp terminal from Molex. It's compatible with the Molex PicoBlade series of connector housings and is your go-to tool for making a fuss-free join between a wire and a PCB. Electrical currents hum along, even with low-voltage and high-voltage industrial vibrations, thanks to a sturdy two-point contact design. Tin-plated phosphor bronze contacts are on hand to ensure this crimp terminal resists oxidation and delivers long-lasting performance.

Features & Benefits

• Accepts wire sizes between 32 and 28AWG for versatility
• Performs reliably in harsh conditions between -40°C and +85°C
• Long product life of up to 30 mating cycles to stand up to long-term use
• Comes in a pack of 100, so you'll have plenty on hand

Applications

• Consumer electronics
• Telecommunications
• Industrial automation

What size is this crimp terminal?

This crimp terminal has a 1.25mm pitch that makes it ideal for tight spaces.

1.25mm Wire to Board - Molex PicoBlade™
