39-01-3022, Molex, Mini-Fit Jr Female Connector Housing, 4.2mm Pitch, 2 Way, 2 Row, Корпус разъема

Molex Mini-Fit Junior Crimp Receptacle and Plug Housings

Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications

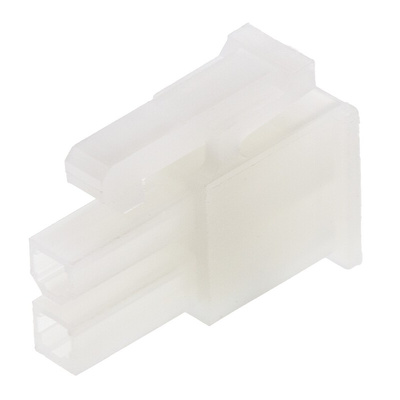

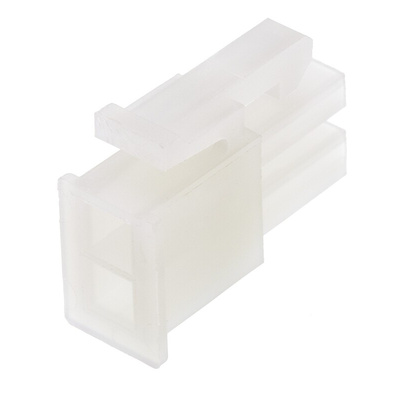

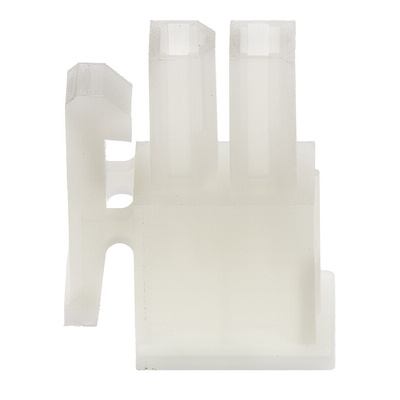

Molex Mini-Fit Jr Female Connector Housing, 2 Way, 2 Rows - 5559 Series - 39-01-3022

This compact connector housing from Molex accommodates two terminals in a nylon construction. It's a versatile and convenient option for making wire-to-wire and PCB (printed circuit board) connections. The terminals slide snugly into place thanks to the straight body orientation of the receptacle and a standard 4.2mm pitch. As each terminal is fully isolated, it's protected from dust and debris that could otherwise interfere with your connections. You can use this housing with standard Mini-Fit and Mini-Fit Plus terminals.

Features & Benefits

• Polarised and keyed to help prevent misalignment and mismating
• Mounts easily onto the cable for a quick connection
• Maximum current of 13A (amperes) per circuit offers high capacity
• Low halogen construction limits the risk of toxic fumes in the event of a fire

Applications

• Automotive industry
• Data processing
• Industrial automation and robotics
• Hydroelectric operations

How does this receptacle secure a strong connection?

When you slide your terminal into place, a positive locking mechanism prevents it from coming loose even if subjected to strong vibrations. You'll hear a click when the terminal is locked into position so you can be certain of a secure connection.
