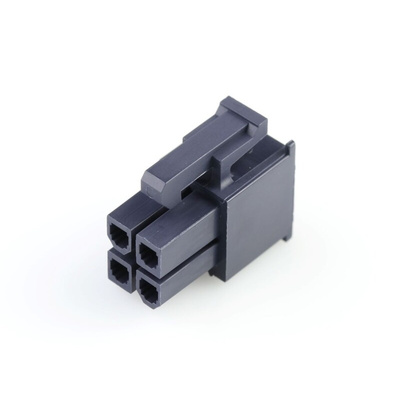

39-01-3045, Molex, Mini-Fit Jr Female Connector Housing, 4.2mm Pitch, 4 Way, 2 Row, Корпус разъема

Molex Mini-Fit Junior Crimp Receptacle and Plug Housings

Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications

Molex Connector Housing, Nylon Construction, 13A Maximum Current - 5557 Series - 39-01-3045

Maintain a secure link between your crimp terminals and PCBs with this connector housing from Molex. It's a space-saving dual-row female connector with 20 contacts that lets you send data signals and power to multiple circuits. A durable nylon body provides resistance to impact and corrosion. Thanks to a pitch of 4.2mm, you can be sure this housing's conductors are safely distanced from each other to prevent arcing or shocks.

Features & Benefits

• Light weight of 1.08g so it won't strain your setup
• Compact dimensions of 9.6 (L) x 15.1 (W) x 19.6mm (D) to fit into enclosures where space is limited
• Polarised design to avoid mismating and ensure a precise connection

Applications

• Industrial washers and dryers
• Security systems
• X-ray machines

Which connectors can I use this housing with?

You can use this widely compatible casing with products in the Mini-Fit Jr series.

Molex Minifit Jr.™ Series

Mini Fit Connector Receptacle Housing Drawing

Datasheet

Line Drawing

Molex Mini-Fit Connector Datasheet
