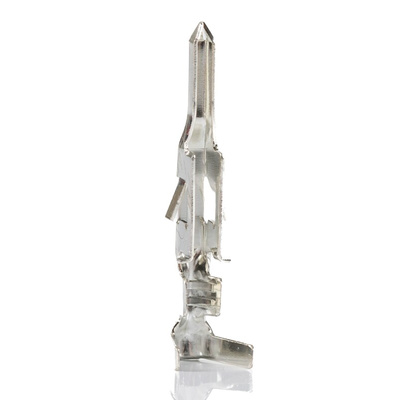

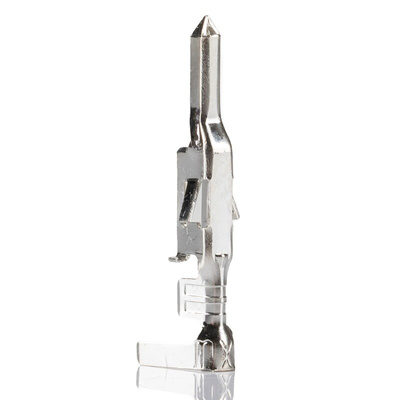

39-00-0121, Molex Mini-Fit Series Male Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

Molex Crimp Terminal, Locking Tangs, 10mΩ Maximum Contact Resistance - Mini-Fit Series - 39-00-0121

Power-up your electrical circuit board with the help of this crimp terminal from Molex. Designed for use with Mini-Fit connector housings, this male-gendered unit features a latch that fits securely with a female terminal. You can count on a strong connection and higher current carrying capacity thanks to its multi-contact point design. Super-sturdy locking tangs ensure the terminal stands up to heavy vibrations during industrial use. It's corrosion resistant too, for a longer product life.

Features & Benefits

• Maximum voltage rating of 600V AC means it's suitable for heavy-duty electrical processing
• Works reliably in harsh conditions thanks to a wide operating temperature range between -40°C and +105°C
• Tin-plated brass contacts deliver dependable conductivity

Applications

• Automotive components
• Industrial automation
• Communications networks

What wire sizes can I use this crimp terminal with?

The component handles wires sized between 24 and 18AWG, so it's a versatile option.

Molex Minifit Jr.™ Series

Male Crimp Terminal with Tin over Nickel Postplate Drawing

Datasheet

Application Sheet - MINI-FIT JR Dual Wire Termination
