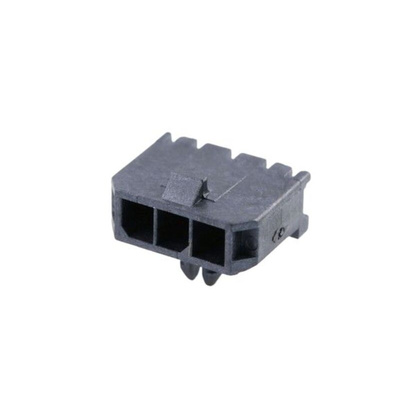

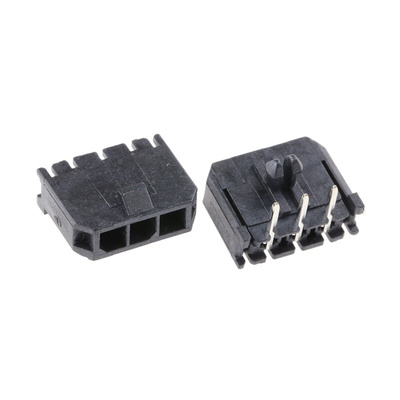

43650-0300, Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 3 Contact(s), 3.0mm Pitch, 1 Row(s), Shrouded

Molex Micro-Fit 3.0 3.0mm Single Row PCB Headers with Snap in Plastic Peg PCB Lock, 43650 Series

Micro-Fit 3.0 3mm pitch wire to board single row PCB headers which form part of a compact power connector system providing a low to mid-range power distribution solution. With the ability to carry up to 5A of current, Micro-Fit 3.0 connectors have one of the highest current carrying abilities in the smallest footprints available. These Micro-Fit 3.0 PCB headers incorporate positive latching in the form of a locking ramp on the housing for secure mating and to prevent accidental disconnection. The housings are made of high-temperature UL 94V-0 Liquid Crystal Polymer that can withstand temperatures of up to 265°C during the IR reflow soldering process. The through hole mounting versions of these Micro-Fit 3.0 headers are also SMT compatible which means a reduction in process requirements and costs. To secure these Micro-Fit 3.0 headers to the PCB board, snap-in plastic peg PCB locks are incorporated into the connector design. The contacts of these Micro-Fit 3.0 headers are fully isolated within the housings to reduce arcing. Tin or a choice of two thicknesses of gold contact platings are available to keep down costs

Features and Benefits

• High current carrying capacity in a small footprint
• High temperature housings for IR reflow soldering
• Through hole versions SMT compatible
• Positive latching for secure mating connection
• Fully isolated dual beam terminals for reliable electrical performance and contact
• Plastic peg PCB locks for secure connection to PCB
• Glow Wire Compliant

Product Application Information

These Micro-Fit 3.0 header connectors are suitable for use in a wide range of low to mid power applications including the following:
Military COTS (Commercial Off The Shelf)
Solar power
Consumer products (dryers, freezers, fridges, washing machines)
Data communications (routers, servers)
Medical
Telecommunications
Gaming terminals

Molex PCB Header, 600V Voltage Rating, 5A Current Rating - Micro-Fit 3.0 Series - 43650-0300

Need to securely link cables to your circuit board? Trust this PCB header from Molex to get a firm grip. It has three contacts arranged in a single row, so it's space-efficient, easy to handle and a neat way to achieve multi-circuit control. Brass contact material ensures you get reliable conductivity, while tin plating shrugs off corrosion to stand up to damp settings.

Features & Benefits

• Thermoplastic housing withstands impact, making it fit for harsh industrial environments
• Through-hole mounting gives you a secure, vibration-proof link to your circuit board
• Solder termination for quick and secure installation

Applications

• Security and surveillance systems
• Computer peripherals
• Medical equipment

What's the benefit of this header's low-halogen design?

The unit's low-halogen construction makes it environmentally safe as it won't emit toxic fumes in a fire.

Molex Micro-Fit 3.0 Series

Micro Fit (3.0) Single Row Right Angle Through Hole Pegs Drawing

Datasheet

Line Drawing
