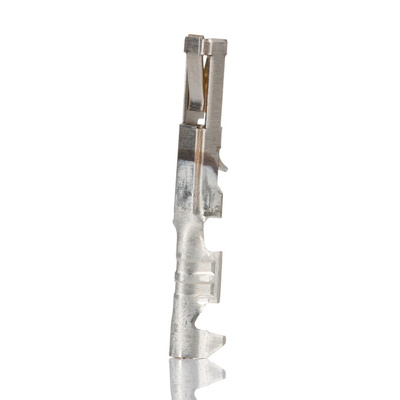

90119-2111, Molex C-Grid III Series Female Crimp Terminal, 24AWG Min, 22AWG Max, Контакты

Molex C-Grid III Crimp Terminals - 90119 Series

C-Grid III 90119 series female crimp terminals for use in C-Grid III 90156, 90123, 90142, 90143 and 90160 series crimp housings. These C-Grid III crimp receptacles terminals have a box design and a uniform locking system that enables them to be used inside different housing styles. The contacts are made from phosphor bronze with a choice of gold or tin plating and suitable for use with wire size ranges of 24-22 AWG or 28-26 AWG.
For suitable crimp tools see stock number 781-2728 for 24-22 AWG terminals and 781-2737 for 28-26 AWG terminals. An extraction tool (stock number 360-6897) and an insertion tool (stock number 360-6881) are also available.

Features:

• Current Rating: 3A max
• Working Voltage: 350 Vac/dc max
• Contact Plating: Selective Gold over Nickel or Tin over Nickel
• Insulation Material Headers: 15% Glass-filled Polyester (PBT)
• Housing: Polyphenylene Oxide
• Header Pin Size: 0.64 square mm
• Recommended PCB Hole Diameter: 1mm

Application:

• Consumer Electronics
• Commercial Vehicles

Molex Crimp Terminal, 3A Current Rating, 20mΩ Maximum Contact Resistance - C-Grid III Series - 90119-2111

To keep electrical currents running reliably, use this crimp terminal from Molex. It helps you reliably connect wires to your PCB via the secure crimp connection method. The terminal accepts wires sized between 22 and 24AWG, so it's widely compatible with commonly used conductors. You won't need to worry about dropped signals thanks to its highly conductive gold-plated phosphor bronze contact surface. The gold plating also resists corrosion to support a long service life.

Features & Benefits

• Low-halogen design boosts safety by minimising the release of toxic fumes when heated
• Glass-filled polyester insulation makes the terminal resistant to heat and vibration for use with moving machinery
• 350V AC/DC working voltage stands up to high-voltage installations

Applications

• Automotive manufacturing
• Industrial automation
• Consumer electronics

What are the benefits of crimp termination?

By compressing wires and the terminal together, crimp termination achieves a secure fix, a high contact surface and an air-tight seal.

2.54mm Molex C-Grid III Range
