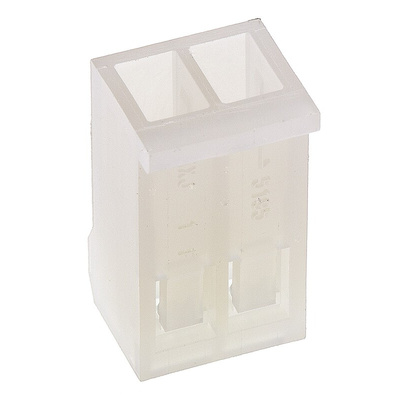

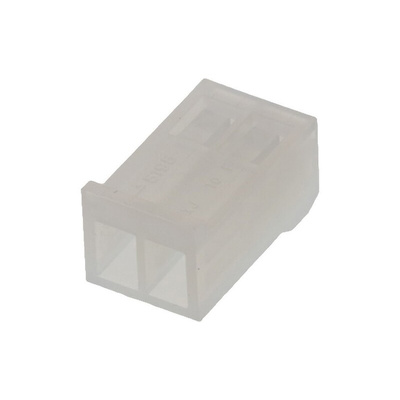

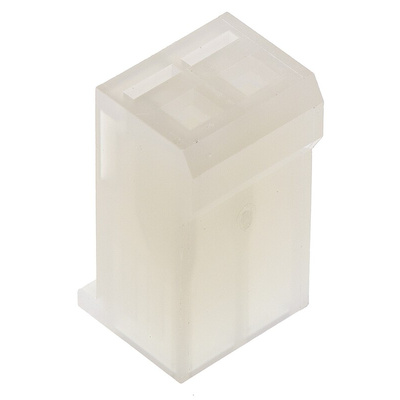

09-50-1021, Molex, SPOX Female Connector Housing, 3.96mm Pitch, 2 Way, 1 Row, Корпус разъема

Receptacle Housings, 5195 Series

Mates with 5273 Series headers typical stock number 670-5231
Mates with 5096 Series 7.92 mm pitch headers typical stock number 720-6713
Uses 5194 Series terminals typical stock number 670-5234

Molex Connector Housing, Straight Body Orientation, Pack of 10 - SPOX Series - 09-50-1021

Looking to make secure connections between your devices? Hold wiring steady with this Molex connector housing. With its friction-lock design, it stands its ground against movement to cut the risk of accidental disconnection. The housing slots together with a header (670-5237), letting you speedily connect circuits. Simple crimp mounting to a cable makes installation fuss-free. As it's made from durable nylon, this housing shrugs off the bumps and scratches you'd expect in an industrial setting.

Features & Benefits

• Straight body orientation for easy access
• Supports 2 circuits to simplify your setup
• Standard 3.96mm pitch for wide compatibility
• Safe to use in harsh environments, thanks to a wide operating temperature range between -40°C and +105°C

Applications

• Power distribution systems
• Control devices
• Automotive industry

What size is this housing?

It's 9.06mm long and 8.85mm wide, so takes up minimal space in a busy setup.

3.96mm Molex SPOX Range

The SPOX range has a terminal which is like a "spring box". This design enables multiple points of contact which protects the mating interface area and also prevents fish-hooking from wires during handling.

Datasheet

Datasheet - 09-50-1021
