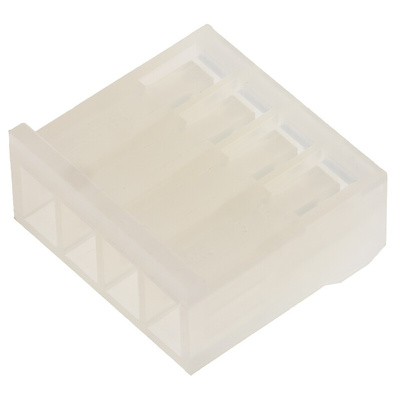

09-50-1041, Molex, SPOX Female Connector Housing, 3.96mm Pitch, 4 Way, 1 Row, Корпус разъема

Receptacle Housings, 5195 Series

Mates with 5273 Series headers typical stock number 670-5231
Mates with 5096 Series 7.92 mm pitch headers typical stock number 720-6713
Uses 5194 Series terminals typical stock number 670-5234

Molex Connector Housing, 4 Contacts, Pack of 10 - SPOX Series - 09-50-1041

For neat and tidy PCB wiring, pick this connector housing from Molex. It's a single-row unit with four contacts, so it's a cinch to connect multiple wires at once. A compact pitch of 3.96mm helps you make the most of space on your board. As the unit's body is made from durable nylon, it stands strong against the corrosion and impact you'd expect in harsh industrial settings.

Features & Benefits

• Performs reliably in challenging conditions, thanks to a wide operating temperature range between -40°C and +105°C
• Light weight of 1.206g puts minimal strain on your PCB
• Self-extinguishes in 30 seconds or less for safety in the event of a fire

Applications

• Robotics and automation systems
• Aviation sector
• Medical equipment

How many connector housings do I get in a pack?

Each pack contains 10 connector housings, so you'll have plenty in stock for multiple jobs.

3.96mm Molex SPOX Range

The SPOX range has a terminal which is like a "spring box". This design enables multiple points of contact which protects the mating interface area and also prevents fish-hooking from wires during handling.

Datasheet

Line Drawing - 09-50-1041
