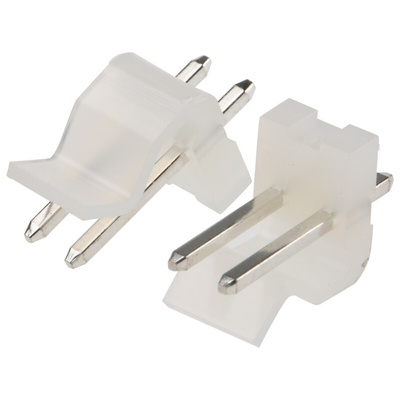

09-65-2028, Molex KK 396 Series Straight Through Hole Pin Header, 2 Contact(s), 3.96mm Pitch, 1 Row(s), Unshrouded

Molex KK 396 3.96 mm PCB Pin Headers - 5273 Series

KK 396 3.96 mm pitch pin headers for use in KK 396 series number 5239 and SPOX 5195 series crimp housings. These PCB pin headers feature a friction locking mechanism for a secure mating connection and are suitable for use in a wide range of applications in the automotive, industrial, consumer, datacommunication and telecommunications industries.

Molex Pin Header, 3.6mm PC Tail Length, Vertical Orientation - 5273 Series - 09-65-2028

To make double the connections to your printed circuit board, go with this 3.96mm-pitch pin header from Molex. When soldered to a PCB, it lets you connect up two circuits using its vertical pins, with a 7A current per contact. Thanks to its maximum voltage rating of 250V, the component is safe to use in heavy-duty electrical systems. You get 10 units in a pack to ensure you have plenty on hand for complex wiring jobs.

Features & Benefits

• Flame-retardant nylon resin body for fire safety
• Withstands up to 30 mating cycles for a durable service life
• 0.66g weight minimises load on the mounting surface
• Through-hole termination style achieves a strong and sturdy connection to your PCB

Applications

• HMI displays
• Circuit testing
• Marine electronics

What's the operating temperature range of this pin header?

It works in temperatures between -40°C and +105°C to suit use in challenging environments.

3.96mm Molex KK Range

SD-5273-NA Dimensional Drawing

Datasheet - 09-65-2028
