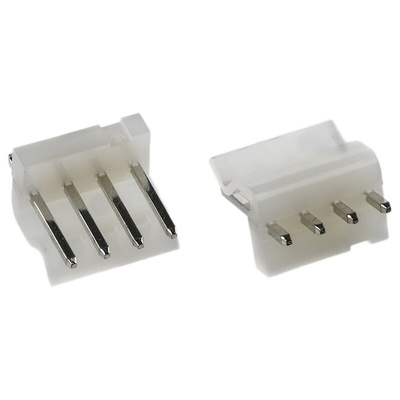

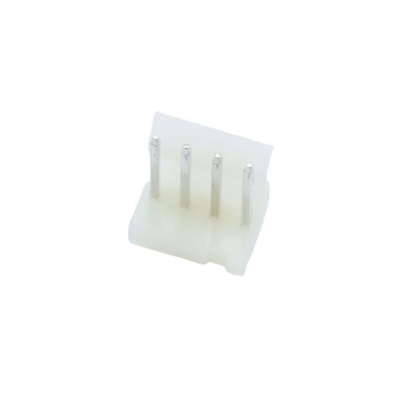

09-65-2048, Molex KK 396 Series Straight Through Hole Pin Header, 4 Contact(s), 3.96mm Pitch, 1 Row(s), Unshrouded

Molex KK 396 3.96 mm PCB Pin Headers - 5273 Series

KK 396 3.96 mm pitch pin headers for use in KK 396 series number 5239 and SPOX 5195 series crimp housings. These PCB pin headers feature a friction locking mechanism for a secure mating connection and are suitable for use in a wide range of applications in the automotive, industrial, consumer, datacommunication and telecommunications industries.

Molex Pin Header, For Wire-to-Board Connections, 7A Current Rating - 5273 Series - 09-65-2048

Want to slot extra devices into your board-mounted system? Make the links with this Molex pin header. It pairs with a female housing (such as 670-5170) to let you connect circuits in a snap. With its highly conductive tin-plated brass pins, the unit keeps signals flowing without a hitch. There's space for up to four circuits, meaning plenty of connectivity is packed into one product. As the header supports through-hole mounting, it solders to the underside of your PCB to achieve a secure fix.

Features & Benefits

• Single-row pin layout for easy access during installation
• Insulating nylon body for effective protection against electrical hazards
• Works in temperatures between -40°C and +105°C to handle tough conditions

Applications

• HVAC systems
• Machine assembly
• Schools and universities

How many times can I reuse this connector?

This header lasts for up to 30 mating cycles, so you get reliable connectivity over a long lifespan.

3.96mm Molex KK Range

SD-5273-NA Dimensional Drawing

Datasheet - 09-65-2048
