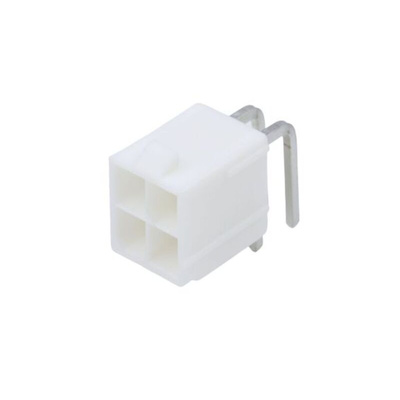

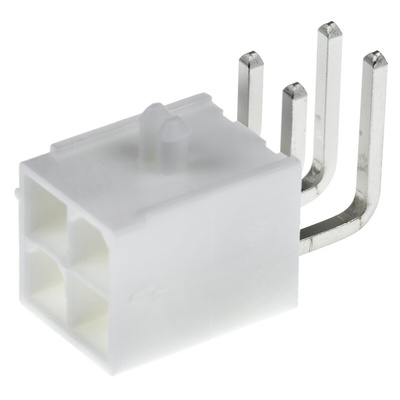

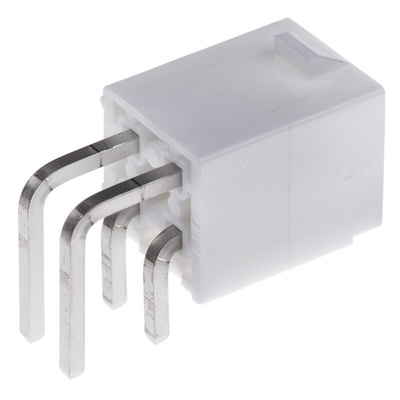

39-30-0040, Molex Mini-Fit Jr. Series Right Angle Through Hole PCB Header, 4 Contact(s), 4.2mm Pitch, 2 Row(s), Shrouded

Mini-Fit Junior 4.2mm PCB Header Connectors

Mini-Fit Junior 4.2 mm pitch PCB headers which form part of the Mini-Fit Junior power connector interconnection system. Mini-Fit Junior power connectors are able to handle up to 9A per circuit making them ideal for use in high current applications. These Mini-Fit Junior PCB headers have fully isolated terminals for protection against, debris, arcing and damage caused by mishandling. The connector housings are also scoop-proof which prevents damage to the pin terminals when mated at a severe angle. The housings of these PCB headers incorporate polarization and keying features to prevent misalignment and mismating with the receptacle. A positive locking mechanism provides a secure connection with the mating receptacle and prevents accidental unmating caused by excessive shock or vibration. An audible click indicates that the connector is fully mated. For a secure connection to the PCB versions of these Mini-Fit Junior PCB headers are available with snap-in plastic PCB peg locks. Versions are also available with PCB mounting flanges. These Mini-Fit Junior 4.2 mm PCB headers are available with a UL94V-0 or UL94V-2 housing material and with a range of contact configurations and contact platings

Features and Benefits

• Can handle Up to 9A current per circuit
• Fully isolated terminals
• Scoop-proof housings to prevent contact damage
• Polarization and keying to prevent mismating
• Positive locking mechanism for secure mating connection
• Audible click for mating confirmation
• Versions with PCB retention pegs and mounting flanges

Product Application Information

Mini-Fit Junior power connectors are ideal for use in high current, high density wire to wire and wire to board applications that require design flexibility. Applications include consumer white goods, office equipment, industrial automation equipment, industrial networks, rack-mount servers, routers and switches.

Molex PCB Header, Tin Contact Plating, Wire-To-Board Type - Mini-Fit Jr Series - 39-30-0040

Need to make an efficient connection between electronic components and a printed circuit board? Pick up this PCB header from Molex. It's a 4-way unit that lets you attach multiple accessories to your board using just one block. As each of its contacts can handle currents up to 9A, this is a suitable option for use with high-power applications. Scoop-proof housing safeguards the unit from accidental damage during assembly, while a snap-in plastic peg lock makes sure it won't wobble loose under vibration.

Features & Benefits

• Terminals are isolated to reduce the risk of arcing
• Safe to use in temperatures between -40°C and +105°C
• Positive locking mechanism ensures straightforward and secure connections

Applications

• Lighting systems
• Communications equipment
• Control panels

How heavy is this component?

It tips the scales at just 1.607g, so it won't put any strain on your installation.

Molex Minifit Jr.™ Series

Mini Fit JR R/A Header Assembly With Mounting pegs Drawing

Datasheet

Product Reference Guide

FiT Families

Product Specification

Application Specification

Molex Mini-Fit Connector Datasheet
