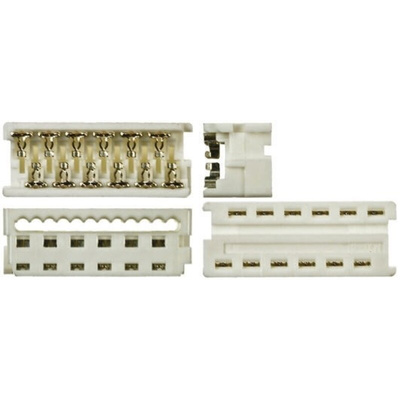

90327-3308, Molex 8-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

IDT Housings

Single piece UL94V-0 housings for precise positioning of IDC cable
4 point contact ensures reliability
For tooling see stock no. 542-8093

Approvals

UL (E29179); CSA (LR19980-181)

Molex Right-Angle Female IDC Connector, 8 Contacts, 1.2A Current Rating - Picoflex Series - 90327-3308

Looking for a safe way to connect your multicore ribbon cable to a PCB? Choose this insulation-displacement contact connector from Molex. It features sharp contact points that pierce the cable insulation, eliminating the need to strip the wires first. As the contacts are made from tough phosphor bronze, they can withstand harsh applications. A broad operating temperature range between -40°C and +105°C means you can safely use this connector in challenging environments.

• Right-angle orientation to fit in awkward spaces
• Polyester housing has thermal resistance for added durability

Applications

• Communications and networking equipment
• Aviation industry
• Manufacturing industry

What's meant by a ribbon cable?

Ribbon cables consist of multiple small conductors arranged parallel to each other in a single housing. They're commonly used to connect internal components in computers.

How durable is this IDC connector?

It has a durability rating of 100 mating cycles to withstand demanding operations.

1.27mm Wire to Board IDT - Molex Picoflex PF-50 Series

The Picoflex Series from Molex is a reliable range of Wire to Board connectors offering designers more options for high-density applications where standard discrete wire and flat flexible connectors are not appropriate. Picoflex IDT connectors are ideal for automotive and consumer electronics industries.

50% space saving compared with traditional pitch
Pre-terminated cable assemblies available
Lower profile (mated height only 6.4mm)
Excellent polarisation features and integral strain relief
High resistance to vibration/shock

IDT Assembly Picoflex Drawing

Datasheet
