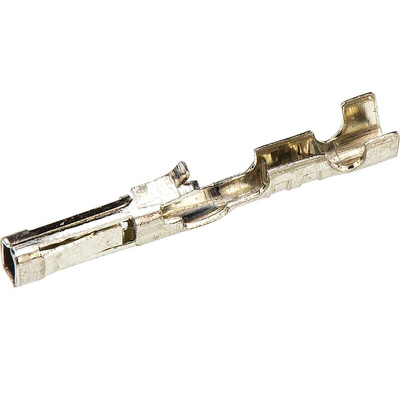

16-02-0082, Molex SL Series Female Crimp Terminal, 30AWG Min, 24AWG Max, Контакты

Molex SL Crimp Contacts, 70058, 71851 and 70021 Series

These ranges of SL series crimp terminal contacts offers to choose from male or female contact, wire size between 30 to 22 AWG, gold or tin contact plating.

For 70066 series SL crimp housings see stock number 670-3843 typically
For 70066D and 70107 series SL crimp housings see stock numbers 670-3890 and 670-4098 typically

Applications:

• Automotive
• Commercial Vehicles
• Consumer Electronics
• Portable Devices
• Medical Industry
• Communications
• Networking

Note

For Reference only: 70058 and 71851 Series also used with 70450 Series Housings

Molex Crimp Terminal, Gold Contact Plating, Pack of 100 - SL 70058 Series - 16-02-0097

For a secure wire-to-board connection, choose this female crimp terminal from Molex as your middleman. It's compatible with wires in a size range from 30 to 24AWG, so it's a versatile option. Feeding slim cables into the fitting is a cinch, as it takes wires with a maximum insulation diameter of just 1.52mm. For complete assembly, mount it in a housing from the SL range (670-3843) to shield your connection from contaminants.

Features & Benefits

• Phosphor bronze contact delivers high electrical conductivity
• Hard-wearing gold plating resists corrosion
• Wide operating temperature range of -40°C to +105°C means it stands up to demanding conditions
• Low contact resistance of 15mΩ for reduced heat generation

Applications

• HVAC systems
• Measuring instruments
• IT infrastructure
• Lighting controls

How do I fix a conductor to this terminal?

You can fix your conductor to this terminal by crimping or compressing to achieve reliable contact.

2.54mm Molex C-Grid/SL Series
