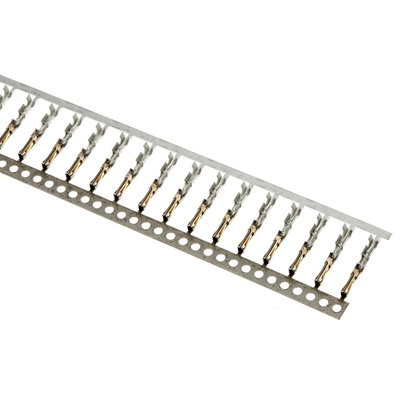

16-02-0087, Molex SL Series Female Crimp Terminal, 24AWG Min, 22AWG Max, Контакты

Molex SL Crimp Contacts, 70058, 71851 and 70021 Series

These ranges of SL series crimp terminal contacts offers to choose from male or female contact, wire size between 30 to 22 AWG, gold or tin contact plating.

For 70066 series SL crimp housings see stock number 670-3843 typically
For 70066D and 70107 series SL crimp housings see stock numbers 670-3890 and 670-4098 typically

Applications:

• Automotive
• Commercial Vehicles
• Consumer Electronics
• Portable Devices
• Medical Industry
• Communications
• Networking

Note

For Reference only: 70058 and 71851 Series also used with 70450 Series Housings

Molex Female Crimp Terminal, 24 to 22AWG, 15mΩ Contact Resistance - SL Series - 16-02-0103

Looking for a way to terminate your signal cable for a reliable connection? Choose this crimp terminal from Molex. The component has a wide operating temperature range between -40°C and +120°C, meaning you can safely use it in harsh environments. It's made from phosphor bronze to offer electrical conductivity and impact resistance to withstand demanding operations. A robust gold-plating on the contact ensures it is resistant to corrosion for added durability.

• Broad wire size range between 24 and 22AWG for versatility
• Contains low levels of halogen for reduced environmental impact

Applications

• Control systems
• Automotive electronics
• Medical and pharmaceutical industry

How do I crimp a cable to this terminal?

To crimp the cable, use a hand crimping tool from Molex (809-2394). Simply strip the outer sheath of the wire and insert the stripped end into this terminal. Place it in the jaw of the crimp tool and press it down so the wire is securely joined to the terminal. The crimp tool features a ratchet mechanism to ensure full crimping is achieved.

2.54mm Molex C-Grid/SL Series
