39-00-0040, Molex Mini-Fit Series Male Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

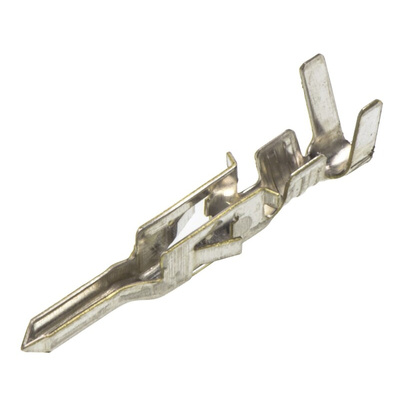

Molex Male Crimp Terminal, 24 to 18AWG, 9A Current Rating - Mini-Fit Series - 39-00-0040

Choose this crimp terminal from Molex to safely terminate your power cables. The brass contact has high electrical conductivity so you can be sure of reliable performance. For versatile assembly, it's compatible with a broad wire size range between 24 and 18AWG. As the locking tangs at its sides ensure a secure fit in the connector housing, you can be sure this terminal won't be dislodged by impact or vibration.

• Wide operating temperature range between -40°C and +105°C for safe use in challenging environments
• Durability rating of 30 mating cycles to protect it from damage through plugging and unplugging
• Compatible with crimping or compressing termination style for added versatility

Applications

• Aviation industry
• Computer devices
• Agricultural industry

Can I remove this crimp terminal after attaching it to a connector housing?

Yes, you can. To safely remove this crimp terminal, use the compatible extraction tool (215-5900) from Molex.

Molex Minifit Jr.™ Series

Datasheet

Line Drawing - 39-00-0040
