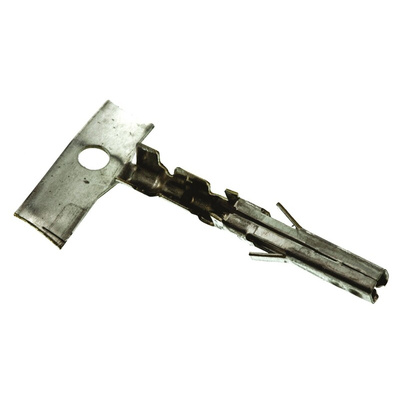

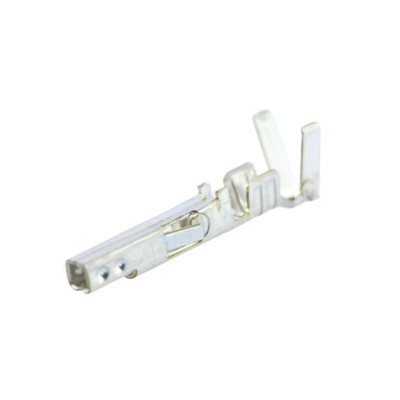

39-00-0046, Molex Mini-Fit Series Female Crimp Terminal, 28AWG Min, 22AWG Max, Контакты

6706319
Номер производителя: 39-00-0046Производитель: Molex
Цена за шт. (норма упаковки 100 шт)
23.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

Molex Crimp Terminal, Brass Contact Material, 22 to 28AWG - Mini-Fit Series - 39-00-0046

When you need a strong connection between a cable and your circuit board, seal the deal with this Molex crimp terminal. The female-gender unit is compressed directly onto your Mini-Fit PCB connector or wire to achieve an airtight grip that keeps moisture and contaminants out. It's a versatile option that's compatible with wires sized between 28 and 22AWG. Locking tangs dial up the security even further to ensure reliable performance, even under heavy-duty vibrations.

Features & Benefits

• Low halogen levels improve fire safety by limiting the emission of toxic fumes
• Resists corrosion in damp environments thanks to tin contact plating
• Crimp termination method means there's no need for complex tools or soldering

Applications

• Automotive industry
• Telecommunications networks
• Security systems

What's the operating temperature range for this crimp terminal?

You can use this terminal in temperatures ranging from -40°C to +105°C, making it a reliable choice for harsh environments.

Molex Minifit Jr.™ Series

Техническая спецификация
pdfDatasheet
pdfProduct Reference Guide
pdfFiT Families
pdfProduct Specification
pdf39-00-0046 - Line Drawing
pdfApplication Sheet - MINI-FIT JR Dual Wire Termination
Для использования с:
Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Концевая заделка:
Crimp
Максимальное контактное сопротивление:
10мОм
Максимальный размер провода AWG:
22AWG
Максимальный размер провода мм²:
0.35мм²
Максимальный ток:
9A
Материал контактов:
Латунь
Минимальный размер провода AWG:
28AWG
Минимальный размер провода мм²:
0.08мм²
Покрытие контактов:
Олово
Рабочая температура - максимальная:
+105°C
Рабочая температура - минимальная:
-40°C
Род:
Female
Серийный номер:
5556
Серия:
Mini-Fit
