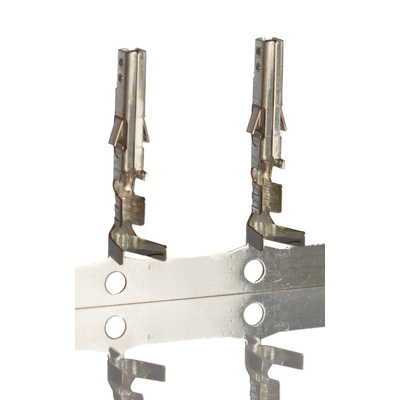

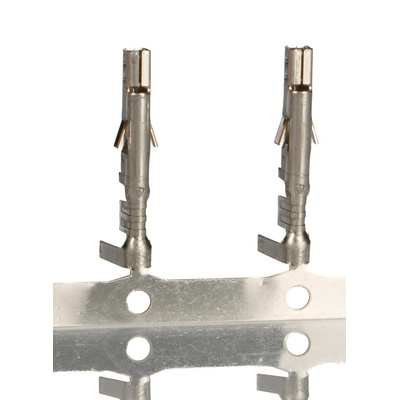

39-00-0059, Molex Mini-Fit Series Female Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

Molex Crimp Terminal, Tin Contact Plating, 0.127g Weight - Mini-Fit Series - 39-00-0060

Terminate wires in a jiffy with this female crimp terminal from Molex. It's a durable option that handles up to 30 mating cycles, so you can trust it in setups that need to be regularly rejigged. The phosphor bronze contact material supports high electrical conductivity to deliver consistent performance. Tin contact plating boosts corrosion resistance while minimising electrical resistance, ensuring a long service life. The terminal can withstand a maximum voltage of 600V, so it's ideal for use with high-powered equipment in demanding environments.

Features & Benefits

• Compatible with 18, 20, 22 and 24AWG wires for versatile use
• Weighs 0.127g, meaning it doesn't add unnecessary load to your setup
• Maximum operating temperature of +105°C, so it can take the heat

Applications

• Electronics manufacturing
• Industrial networking
• Automotive repairs

How big is the connector?

This product's dimensions are 14.7 (L) x 1.7mm (W), so it fits easily into busy circuits.
