39-00-0077, Molex Mini-Fit Series Female Crimp Terminal, 16AWG Max, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

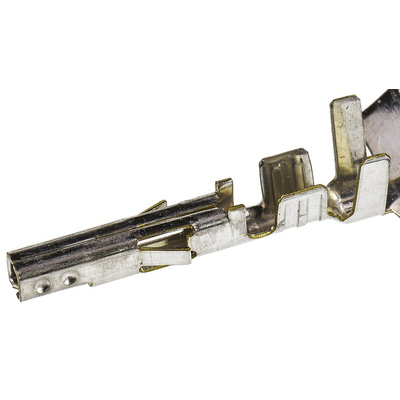

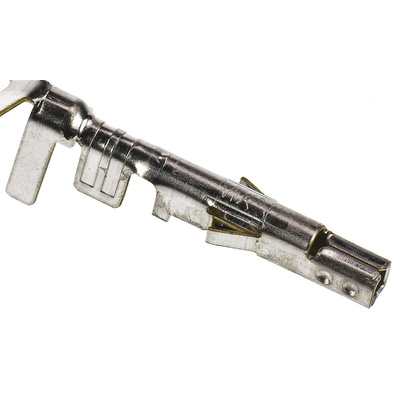

Molex Mini-Fit Female Crimp Terminal, 16AWG - 5556 Series - 39-00-0077

When you need to connect wires and components in your electrical equipment, this crimp terminal from Molex is an effective solution. The terminal offers multiple points of contact for wiring, increasing conductivity for more reliable electrical connections. It's compatible with the Molex Mini-Fit Jr, Mini-Fit TPA (terminal position assurance) and Mini-Fit BMI (blind mate interface) series of plug and receptacle housings, making it a highly versatile choice. The locking tangs let you install the unit securely with minimal tooling or maintenance required. Use this crimp terminal with 16AWG (American Wire Gauge) wires in your electrical applications.

• Tin-plated brass contacts offer a good level of electrical conductivity and resistance to oxidation for reliable performance over a long lifespan
• Maximum voltage rating of 600V for compatibility with the majority of electrical applications
• Maximum of 30 mating cycles for long-lasting use

Applications

• Consumer electronics
• Power supplies
• Industrial machinery

Can this product be used in extreme environments?

This terminal has a wide operating temperature range of -40°C to +105°C, making it suitable for use in a variety of demanding settings.

Molex Minifit Jr.™ Series

Datasheet

Product Reference Guide

FiT Families

Product Specification

39-00-0077 - Line Drawing
