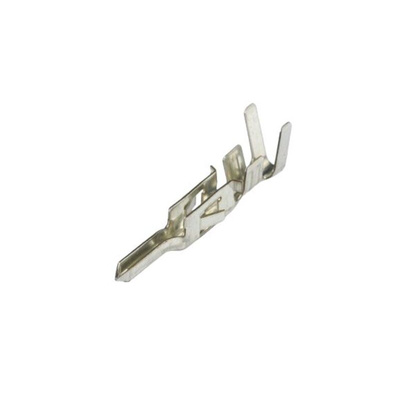

39-00-0126, Molex Mini-Fit Series Male Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

Molex Mini-Fit Series Crimp Terminal, Phosphor Bronze, Tin Plating - 39-00-0126

This Molex crimp terminal, featuring phosphor bronze contact material and tin plating, is a reliable solution for various industries such as automation, electronics, electrical, and mechanical. This male crimp terminal can accommodate wire sizes from 24 AWG to 18 AWG, making it versatile and suitable for different applications. The series number 5558 ensures compatibility and quality assurance in every use.

Features & Benefits

• Suitable for use with mini Fit Jr, TPA, and BMI connector housings
• Crimp termination method for secure connections
• Gender specific design for optimised performance
• Compatible with wire sizes ranging from 0.2 mm² to 0.8 mm²
• High quality phosphor bronze contacts material for durability and conductivity

Applications

• Ideal for automotive wiring harnesses
• Perfect for PCB assemblies
• Suitable for industrial control systems
• Used in aerospace applications
• Compatible with data communication equipment

Can it be used with Mini-Fit TPA connector housings?

Yes, the crimp terminal is specifically designed for use with Mini-Fit TPA connector housings.

Will it work with wire sizes outside the specified range?

No, the crimp terminal is optimised for wire sizes between 24 AWG and 18 AWG.

Is it suitable for high-traffic applications?

Yes, the crimp terminal is designed to withstand high-traffic scenarios for long-lasting performance.

Can it be used with other Molex connector series?

The crimp terminal is best suited for Mini-Fit Jr, TPA, and BMI connector housings for optimal compatibility.

Does it come with additional plating options?

No, the crimp terminal comes with tin plating for reliable connections.

Molex Minifit Jr.™ Series

Male Crimp Terminal with Tin over Nickel Postplate Drawing

Datasheet

Application Specification - 39-00-0126
