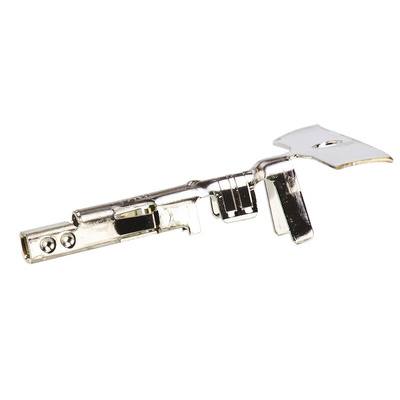

39-00-0207, Molex Mini-Fit Series Female Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

Molex Crimp Terminal, 10mΩ Maximum Contact Resistance, 600V Maximum Voltage - Mini-Fit 5556 Series - 39-00-0208

Fasten a wire to your board using this female-gendered crimp terminal from Molex. Its connection point is made from highly conductive brass to ensure reliable current transmission. The tangs in the contact help lock it into a connector housing from the Mini-Fit range, so you can be sure of a secure hold. As the unit handles up to 30 mating cycles, you can plug and unplug it multiple times without loss of performance.

Features & Benefits

• Multiple contact points for higher current-carrying capacity
• Pack of 100 to keep you stocked up
• Dependable performance in a broad operating temperature range of -40°C to +105°C
• Tin-over-nickel contact plating resists corrosion, for safe use in damp settings

Applications

• Security systems
• Power plants
• Marine engineering
• Telecoms equipment

What wire sizes can I fit into this terminal?

It accommodates wires that range in size from 24 to 18AWG for flexibility in your cable assembly.
