39-00-0213, Molex Mini-Fit Series Female Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

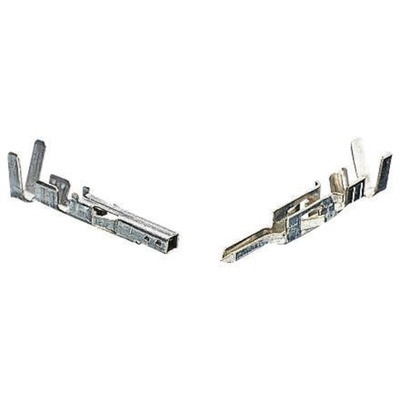

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

Molex Crimp Terminal, 600V Maximum Voltage, 0.14g Weight - Mini-Fit 5556 Series - 39-00-0214

Securely join a wire to your PCB using this female crimp terminal from Molex. It has multiple points of contact to ensure it delivers current where it needs to go. As it's made of conductive phosphor bronze, you can be sure of reliable power transmission. A covering of tin plating removes the risk of corrosion from the equation. Termination is a quick and simple job, as you can either crimp or compress your wire.

Features & Benefits

• Locking tangs achive a secure hold in a connector housing
• 24 to 18AWG wire size range for wiring flexibility
• 9A current rating to accommodate low-current operations

Applications

• Agricultural equipment
• Control panels
• Medical devices

Can I unplug and reconnect this terminal?

Yes, it can withstand 30 mating cycles without suffering mechanical wear.

What type of housing can I use with this terminal?

It's compatible with housings from both the Mini-Fit Jr and Mini-Fit TPA ranges.

Molex Minifit Jr.™ Series

Mini Fit JR Terminal Female Crimp Drawing

Datasheet
