39-00-0432, Molex Mini-Fit Series Male Crimp Terminal, 28AWG Min, 22AWG Max, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

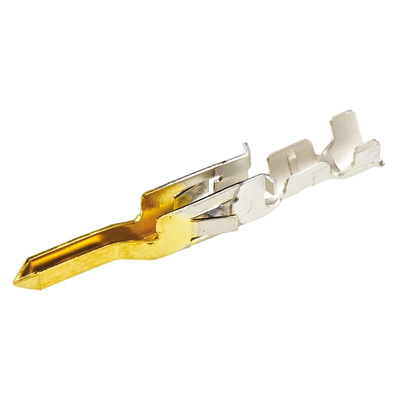

Molex Mini-Fit Male Crimp Terminal, 22 to 28AWG - 5558 Series - 39-00-0432

Use this crimp terminal from Molex as an efficient way to set up PCBs (printed circuit boards) in your electrical equipment. It lets you wire a variety of electrical components into the board or a power supply. As there are multiple points of contact, the terminal provides reliable electrical conductivity and ensures reliable and good-quality signal transfer. This terminal is compatible with common wire sizes ranging from 28 to 22AWG (American Wire Gauge), making it a versatile choice to turn to for a variety of applications.

• Compatible with the Molex Mini-Fit Jr series of connector housings for ease of installation
• Maximum voltage rating of 600V for use in demanding electrical applications
• Locking tangs ensure a secure connection in a housing to prevent accidental disconnections

Applications

• Medical devices
• Automotive equipment
• Telecommunications applications

What's this product made of?

The crimp terminal is made of gold-plated brass that's highly conductive and resistant to corrosion. This gives you a reliable electrical connection that won't be damaged by rust or wear, even when used in demanding conditions.

Molex Minifit Jr.™ Series
