50013-8000, Molex Female Crimp Terminal, 28AWG Min, 24AWG Max, Контакты

Crimp terminals, 50012 Series

For use with 51005 and 51006 Series Housings

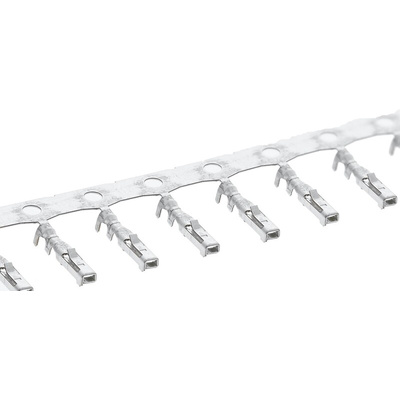

Molex Female Crimp Terminal, 28 to 24AWG - 50013-8000

Quickly connect your signal wires with this crimp contact from Molex. Using the multiple arms on the metal casing, you can swiftly and securely clamp your wires in place. As the unit is made from strong and pliant phosphor bronze with malleable tin plating, it's easy to create a firm and long-lasting hold. Once inserted into your choice of plastic housing, the locking tang prevents the connection from coming loose. This makes it practical for use in applications where vibration and movement are likely, including automotive electronics and industrial control panels.

• Takes wire sizes between 28 and 24AWG (American Wire Gauge) to work with common signalling circuits
• Wide operating temperature between -40°C and +105°C for use in demanding environments
• Made with low-halogen materials to improve safety in critical consumer and industrial applications

Applications

• Communication and data transfer
• Electronics assembly
• Industrial control and automation
• Automotive industry

What's the difference between a male and female crimp terminal?

A female crimp terminal is formed like a socket while a male crimp terminal has a pin-shaped end to plug into it.

Molex 51005 Series (0.079in./2.00mm)

2.0 Wire to Wire Conn Crimp Receptacle Drawing
