50125-8000, Molex PicoBlade Series Male Crimp Terminal, 28AWG Min, 26AWG Max, Контакты

Molex PicoBlade Crimp Contacts - 50058, 50079 and 50125 Series

Crimp pin and receptacle contacts for use in PicoBlade receptacle and plug housings. These PicoBlade crimp contacts feature a two-point contact design which provides a reliable electrical connection in low current, low voltage and high vibration conditions. The contacts are tin plated and are available for use with wire size ranges of 26 AWG to 28 AWG and 28 AWG to 32 AWG.

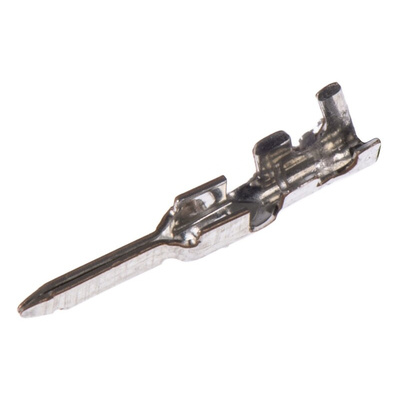

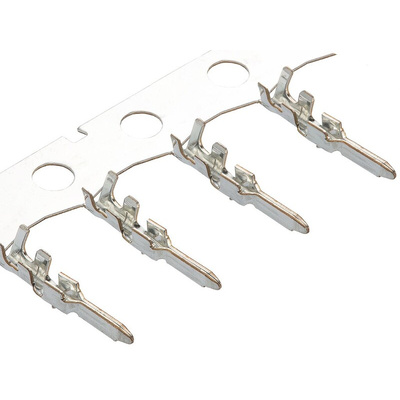

Molex Crimp Terminal, Male, 1A Current - PicoBlade Series - 50125-8000

For the secure termination of your signal cables, choose this crimp terminal from Molex. As it's made from phosphor bronze, it has high electrical conductivity for use in demanding operations. It also features a two-point contact design to deliver a reliable electrical connection. A maximum current rating of 1A makes it suitable for use in low-power systems.

Features & Benefits

• Tin contact plating offers resistance to corrosion, so safe for use in damp conditions
• Wire size range between 28 and 26 AWG for easy compatibility

Applications

• Mining and quarrying industry
• Packaging applications
• Aviation engineering
• Consumer electronics

What type of connector housings can I use with this crimp terminal?

You can use this crimp terminal with connector housings from the PicoBlade range for simple assembly.

How do I assemble my wire in this crimp terminal?

You can assemble a cable in this terminal by straightforward crimping or compressing.

1.25mm Wire to Board - Molex PicoBlade™

1.25 Wire to Wire Conn Crimp Plug Terminal Drawing

Datasheet

Application Sheet - Picoblade 1.25 W/W Type

Product Specification Sheet - Picoblade 1.25
