87421-0000, Molex Pico-SPOX Series Female Crimp Terminal, 26AWG Min, 24AWG Max, Контакты

Crimp Terminals, 87421 Series

Pico-SPOX Crimp Contact Terminal for use with 87439 Series housings typical stock number 670-4155

For Pico-SPOX Crimp tool see stock number 822-7767

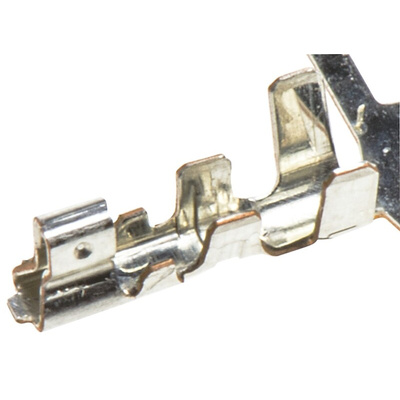

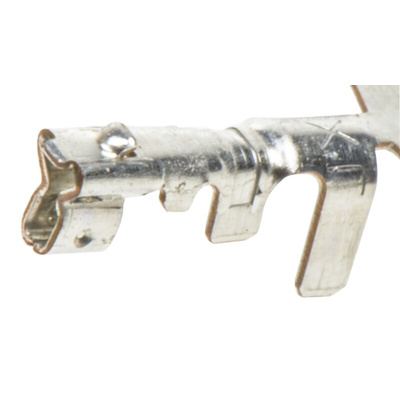

Molex Pico-SPOX Female Crimp Terminal, 24 to 30AWG, 40mΩ - 87421 Series - 87421-0000

Reliably wire a compact circuit board with this female crimp terminal from Molex. Thanks to the hard and resilient phosphor-bronze material, it's capable of high-tension clamping. A friction lock design improves wire retention without needing to increase the size of the terminal, making this a space-saving choice. The contact and mating points are plated with tin to maximise conductivity, giving you a solid electrical connection. For flexible use, the holder takes signalling wires that are sized 0.05 to 0.2mm² and 24 to 30AWG (American Wire Guage).

Features & Benefits

• Wide operating temperature range of -55°C to +105°C for use in harsh environments
• Suitable for voltages up to 250V for compatibility with industrial and domestic electrical circuits
• Crimp termination for quick and solder-free wire installations
• Supplied in a convenient pack of 100

Applications

• Industrial automation and process control
• Domestic appliances
• Computer peripherals
• Portable medical devices

What tool is recommended to install this crimp terminal?

It's best to use a hand crimp tool to secure your wires properly. Molex's 30 to 24AWG (822-7767) hand tool is the right size to fit this female crimp terminal.

1.5mm Wire to Board - Molex Pico-SPOX

Molex's Pico-Spox connector system is an ideal solution for higher current wire-to-board configurations in tight packaging applications. The system is rated for 3A max. using AWG #24 wires in a compact 1.50mm pitch design.

Datasheet

Datasheet

Instruction Sheet - 87421-0000

Line Drawing - 87421-0000

Specification Sheet - 87421-0000
