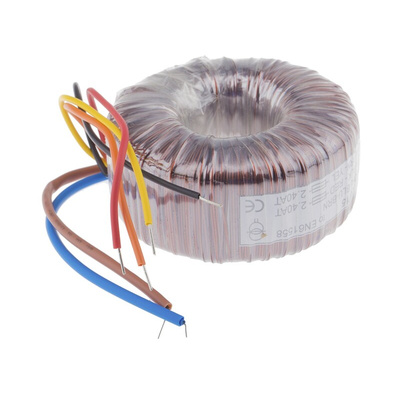

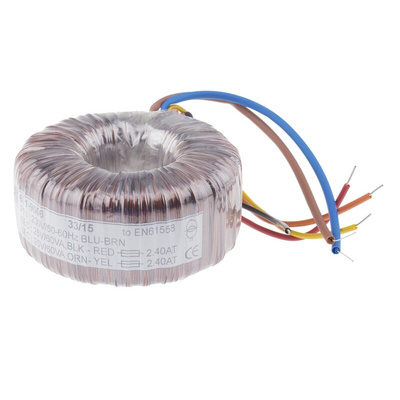

RS PRO 230V ac, 2 x 25V ac Toroidal Transformer, 120VA 2 Output, Трансформатор

Toroid open wound 230V primary

High quality open style toroidal transformers with single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.

Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Double insulated primary leads

Note

Mounting hardware is not supplied, available seperately

Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

Approvals

UL506, EN61558

RS Pro Datasheet

RS PRO Suggested Mounting Discs for toroidal transformers (Accessory Overview)
