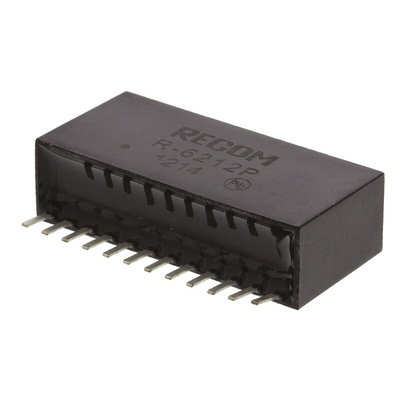

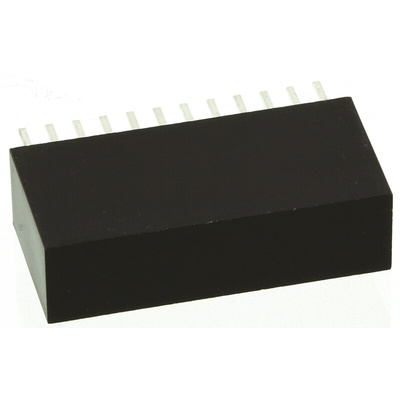

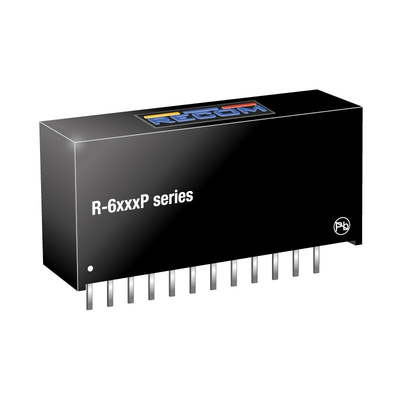

R-6212P, Recom Switching Regulator, Through Hole, 12V dc Output Voltage, 14 → 32V dc Input Voltage, 2A Output Current, 1, Импульсные стабилизаторы

RECOM Switching Regulator, 3.3 to 15V DC Output Voltage, 93% Maximum Efficiency - R-6XXX Series - R-6212P

This switching regulator from RECOM adapts power inputs to levels that suit your appliances. Its output voltage adjusts between 3.3 and 15V DC, so it's a versatile choice. As it connects to your PLC, the unit acts remotely to provide convenient voltage switching. It converts up to 93% of input voltage, so you can rely on it for efficiency. Built-in short-circuit protection protects attached equipment from hazards and the device automatically resets after a fault to minimise downtime.

Features & Benefits

• Load regulation of ±1% provides a stable supply through input changes for reliability
• Supports input voltages between 14 and 32V DC for wide compatibility
• Compact dimensions of 32.2 (L) x 9.1 (W) x 15mm (H) for easy mounting on busy boards
• Wide operating temperature range from -40°C to +85°C for use in demanding conditions

Applications

• Car radios
• Surveillance systems
• Renewable energy industry

What's the difference between switching regulators and linear regulators?

Switching regulators like this one convert DC voltages more efficiently than linear regulators. Thanks to their integrated control chips, switching regulators have better protection against electrical faults than linear regulators so deliver high system safety.
