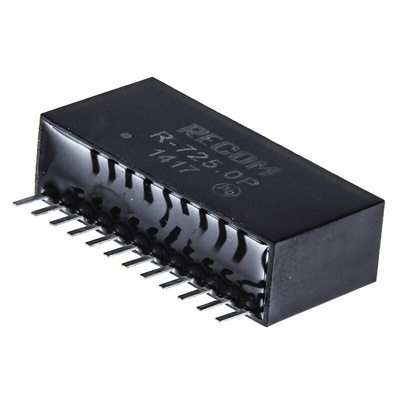

R-725.0P, Recom Switching Regulator, Through Hole, 5V dc Output Voltage, 6.5 → 28V dc Input Voltage, 2A Output Current, 1, Импульсные стабилизаторы

R-7xxxP Series

Non-isolated
Positive step down integrated switching regulator
Wide input voltage range
Adjustable output voltage via external resistors
Remote On/Off Control
Over load and continuous short circuit protection
Vertical mount, SIP-12 package

Note

Operating temperature quoted without derating output.
Adjustable output voltage range shown in brackets.

RECOM Switching Regulator, 91 to 96% Efficiency, Continuous Short-Circuit Protection - R-72 Series - R-725.0P

Take charge of energy delivery to your PCB-connected devices with this switching regulator from RECOM. It works by stepping down input signals ranging from 6.5 to 28V DC to a balanced 5V DC output that low-voltage components like timers and sensors can use. For added versatility, this output can be adjusted between 3 and 5.5V DC to serve your system's needs. Integrated short-circuit protection with automatic recovery is on hand to protect your equipment from damage and shield you from shocks.

Features & Benefits

• Maximum efficiency of 96% means there's minimal energy loss, eliminating the need for heatsinks
• Through-hole mounting style gives a reliable connection that stays put in vibrating systems
• Broad operating temperature range between -40°C and +85°C for use in demanding conditions
• Durable non-conductive plastic housing for impact resistance and user safety during installation

Applications

• Battery chargers
• Telecommunications systems
• Medical equipment

Is this switching regulator flame-resistant?

Yes, this device is self-extinguishing and stops burning in under 10 seconds in the event of a fire, so it plays its part in boosting workplace safety.
