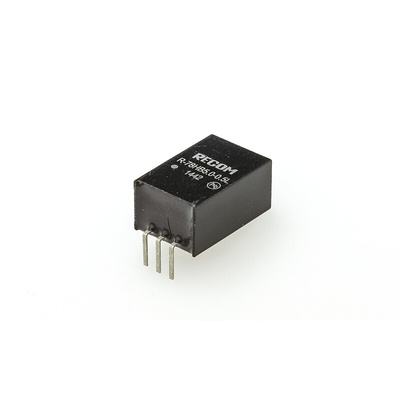

R-78HB5.0-0.5L, Recom Switching Regulator, Through Hole, 5V dc Output Voltage, 9 → 72V dc Input Voltage, 500mA Output Current, 1, Импульсные стабилизаторы

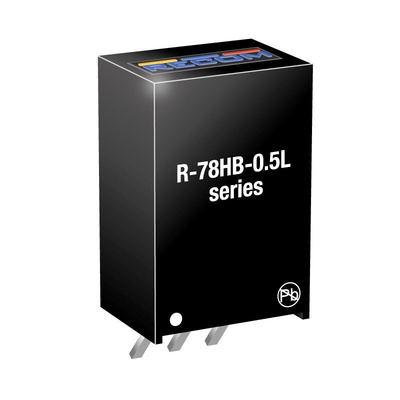

R-78HBxx-0.5L Series

Non-isolated
Medical safety approval EN-60601-1-2
High efficiency switching regulator
High voltage input range, up to 72V
Thermal shutdown and continuous short circuit protection
Low ripple and noise
Low profile
Pin-out compatible with LM78XX Linear regulators
”L” version with 90° pins

Note

De-rate above 71°C operating temperature.
MTBF to MIL_HDBK 217F.

Standards

EN-55022, EN-55024, EN-60601-1-2, EN-60950-1

RECOM Switching Regulator, 2.5W Power Rating, 81% Efficiency - R-78HBXX Series - R-78HB5.0-0.5L

Use this switching regulator from RECOM to regulate the output voltage of your industrial equipment. It's a single inline package with one row of connection pins. Thanks to an output voltage of 5V DC and a broad input voltage range from 9 to 72V DC, you can rely on it in both low-voltage and high-voltage systems. A mean time between failures of 7,395,000 hours ensures this is a long-lasting choice. Its plastic housing and built-in short-circuit protection give you durability and longevity, as well as protection from electric shocks and thermal impact.

Features & Benefits

• Broad operating temperature range of -40°C and +85°C for use in harsh conditions
• ±1% line regulation maintains a steady output voltage for optimum device application
• Compact dimension of 11.5 (L) x 17.5 (W) x 8.5mm (D) to fit in busy setups
• Output voltage of 500mA for energy efficiency

Applications

• Medical power supplies
• Consumer electronics
• Security and communication equipment
• Packaging industry

How do I install this switching regulator?

The switching regulator has a through-hole mounting style for quick and easy installation without drilling.

Datasheet

Datasheet - R-78Hb-0.5(L)
