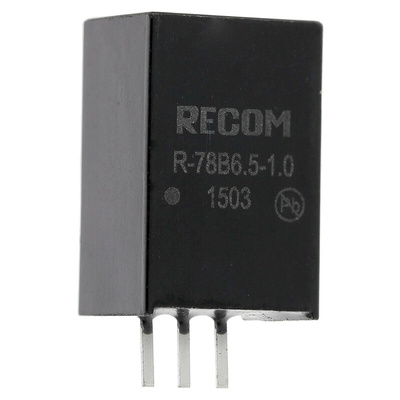

R-78B6.5-1.0, Recom Switching Regulator, Through Hole, 6.5V dc Output Voltage, 32V dc Input Voltage, 1A Output Current, 1 Outputs, Импульсные стабилизаторы

R78Bxx 1.0 Series Switching Regulator

The Recom R-78Bxx series are highly efficient, non-isolated switching regulators. They offer a high-quality product at a low cost in production quantity. Their low-profile design enables them to be used in numerous applications from distribution supply systems, controllers and sensors, robotics, medical and telecommunications.

The convertor has a high-voltage input range and there is no need for heat sinks, due to little energy being wasted. It has a wide input range with short circuit protection and no external components are needed to work efficiently.

Features and Benefits

• Low profile
• Pin compatible with LM78xx linear regulators
• High efficiency, non-isolated, no need for heatsinks
• Requires no external components
• Fully protected for short circuit
• Low ripple and noise
• Compact size, ensuring space saving

Note

Derate output when operating temperature above 71°C.

Standards

EN-55022, EN-55024, EN-60601-1-2, EN-60950-1
