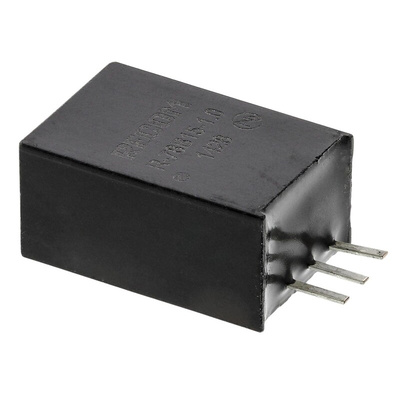

R-78B15-1.0, Recom Switching Regulator, Through Hole, 15V dc Output Voltage, 32V dc Input Voltage, 1A Output Current, 1 Outputs, Импульсные стабилизаторы

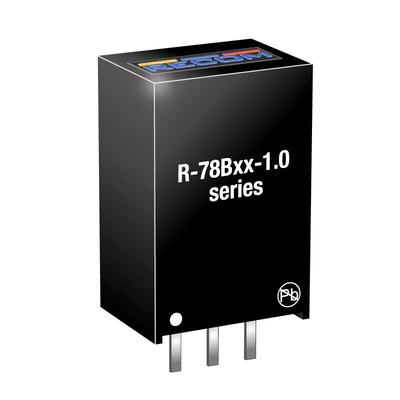

R78Bxx 1.0 Series Switching Regulator

The Recom R-78Bxx series are highly efficient, non-isolated switching regulators. They offer a high-quality product at a low cost in production quantity. Their low-profile design enables them to be used in numerous applications from distribution supply systems, controllers and sensors, robotics, medical and telecommunications.

The convertor has a high-voltage input range and there is no need for heat sinks, due to little energy being wasted. It has a wide input range with short circuit protection and no external components are needed to work efficiently.

Features and Benefits

• Low profile
• Pin compatible with LM78xx linear regulators
• High efficiency, non-isolated, no need for heatsinks
• Requires no external components
• Fully protected for short circuit
• Low ripple and noise
• Compact size, ensuring space saving

Note

Derate output when operating temperature above 71°C.

Standards

EN-55022, EN-55024, EN-60601-1-2, EN-60950-1

RECOM Switching Regulator, SIP Package, 97% Efficiency - R-78B-1.0 Series - R-78B15-1.0

This switching regulator from RECOM converts DC signals from an input source to a stable 15V DC output level that your connected device can handle. It works with a broad input voltage range between 20 and 32V DC, so you can rely on it to withstand your high-powered equipment. For system safety, the unit comes with built-in short-circuit protection. Integrated thermal shutdown means quickly switches off when it detects critical temperature levels, protecting your setup from damage.

Features & Benefits

• Compact dimensions of 17.5 (D) x 8.5 (W) x 11.5mm (L) to fit on crowded boards
• Efficiency rating of 97% for reliable operation with minimal energy wastage
• Non-conductive plastic case with epoxy offers protection from electric shocks
• Pin-out compatible with LM78xx linear regulators for versatility

Applications

• Electrical engineering
• Robotics systems
• Networking equipment
• Medical devices

What's the temperature rating of this switching regulator?

This regulator has a broad operating temperature range between -40°C and +85°C, meaning you can safely use it in challenging environments.

How long will this regulator last?

This switching regulator has a mean time between failures of 6,584,000 hours, so it's a long-lasting option.
