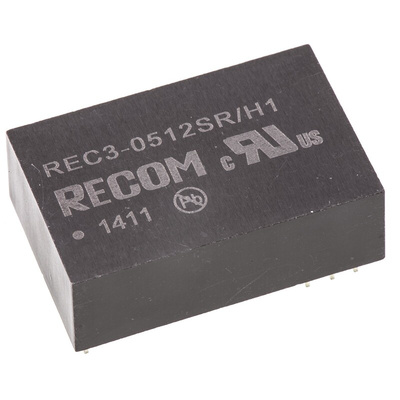

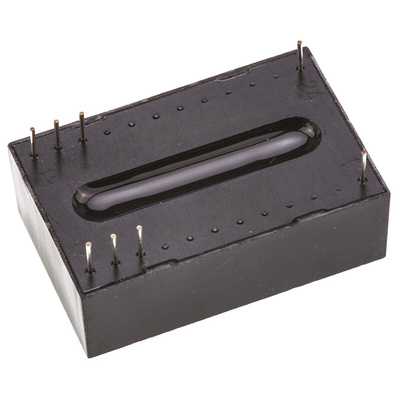

REC3-0512SR/H1, Recom REC3 DC-DC Converter, 12V dc/ 250mA Output, 4.25 → 5.75 V dc Input, 3W, Through Hole, +80°C Max Temp -40°C, Преобразователь

Recom 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - REC3-H1 Series

Regulated output
1kVdc isolation
Continuous short circuit protection
Efficiency at full load to 65%
DIP24 package

Note

MTBF to MIL-HDBK 217F.
Operating temperature is without derating.

Standards

EN-60950-1, UL-60950-1

Approvals

UL recognised

RECOM DC-DC Converter, Single Output, 2200μF Maximum Capacitive Load - REC3 Series - REC3-0512SR/H1

Keep the juice flowing to your low-power equipment with this DC-DC converter from RECOM. It takes an input of 5V and delivers a steady 12V output so you can be sure of a consistent supply. Plus, with an isolation voltage of 1kV DC, this nifty piece of kit keeps your components safe in the event of a fault. Thanks to the standardised DIP-24 package, this mini marvel is widely compatible with existing technology architectures for easy integration into your system. The straightforward through-hole mounting method keeps your connections secure even in a high-vibration environment, so it's a robust choice for demanding industrial jobs.

• Wide operating temperature between -40°C and +80°C for compatibility with harsh conditions
• 950,000 hour mean time between failures means you can expect a long service life
• Compact dimensions of just 32 (L) x 10.2 (D) x 20.3mm (W), so it fits comfortably on a crowded board

Applications

• Telecommunications equipment
• Consumer electronics
• Medical devices

Can this converter cope with high start-up currents?

Yes. This powerful gadget can run at 140% its rated power for short periods, so it's a reliable option for applications that need a bit of extra oomph to get going.
