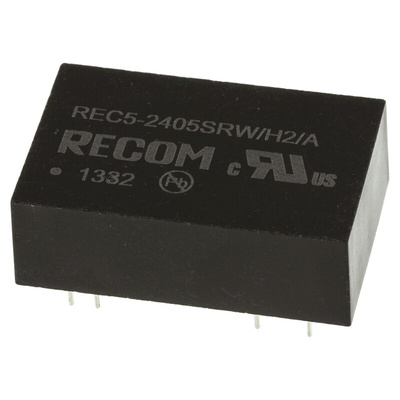

REC5-2405SRW/H2/A, Recom REC5 DC-DC Converter, 5V dc/ 1A Output, 18 → 36 V dc Input, 5W, Through Hole, +75°C Max Temp -40°C Min Temp, Преобразователь

Recom 5W DIP Single Output Medical Approved Regulated Isolated DC-DC Converter - REC5-H2/A Series

Feedback regulated output
Medical safety approval EN-60601-1
2kVdc isolation
Continuous short circuit protection
Wide inputs 2:1 and 4:1
Efficiency up to 86%
DIP24 package

Note

MTBF is to MIL-HDBK 217F.
Derate output when operating temperature above 75°C.

Standards

EN-60950-1, UL-60950-1, EN60601-01

Approvals

UL recognised

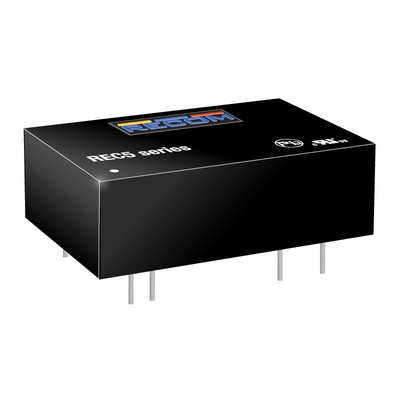

RECOM DC-DC Converter, Non-Conductive Plastic, 86% Efficiency - REC5 Series - REC5-2405SRW/H2/A

Ensure a stable DC voltage supply for your equipment using this DC-DC converter from RECOM. An input voltage range between 18 and 36V DC is stepped down to 5V DC, meaning you can safely use the unit with low-voltage systems. Thanks to its wide operating temperature range between -40°C and +75°C, it can withstand demanding environments. An MTBF rating of 206,000h means you can use it for a long time with minimal risk of breakdowns. As input and output voltages are isolated by this device, it helps prevent electric hazards and supports safe operation.

Features & Benefits

• Continuous short-circuit protection helps prevent damage from irregular currents

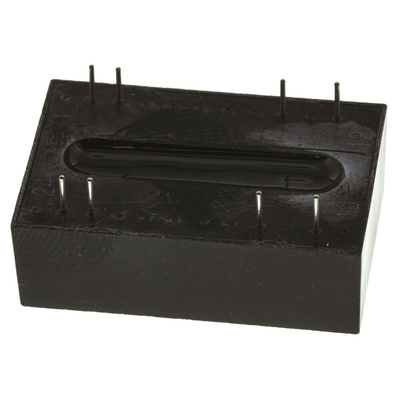

• Pre-drilled holes in body for hassle-free mounting
• High output voltage accuracy of ±2% for reliable conversion
• Non-conductive plastic case insulates to help prevent electric shocks
• Compact dimensions of 32 (L) x 20.3 (W) x 10.2mm (D) to fit in tight spaces

Applications

• Electric motors
• Medical and pharmaceutical industry
• Consumer electronics

How efficient is this converter?

This converter has an efficiency rating of 86%, which means it converts the input voltage efficiently and wastes minimal energy.
