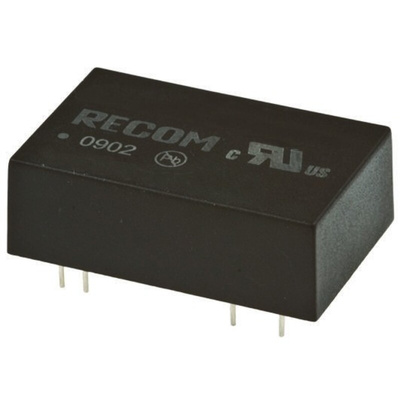

REC5-2412SRWZ/H2/A, Recom REC5 DC-DC Converter, 12V dc/ 420mA Output, 9 → 36 V dc Input, 5W, Through Hole, +75°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, 1kV AC Isolation Voltage, 85% Efficiency - REC5 Series - REC5-2412SRWZ/H2/A

Get the right power flowing through your system with this DC-DC converter from RECOM. It smooths out 9 to 36V inputs and delivers the stable 12V output needed for the consistent performance of your voltage-sensitive applications. Integrated short-circuit protection is on hand to prevent equipment damage, injuries and service standstills. This component also automatically restarts after a disruption, saving you time and effort. To add another layer of safety, 1kV AC isolation keeps incoming and outgoing feeds separate. Installing the device is a cinch – just punch its pins through the corresponding holes on your PCB.

• Wide operating temperature range of -40°C to +75°C for use in challenging conditions
• Dimensions of 32 (L) x 10.2mm (D) make it a space-saving option
• DIP-24 package insulates against shocks and protects live components

Applications

• Medical devices
• Consumer electronics
• Smart lighting systems
• Automated factory processes

What's the efficiency rating of this DC-DC converter?

The unit has an efficiency rating of 85%, meaning it wastes minimal energy as heat during the conversion process.

What power rating does this unit have?

This product has a power rating of 5W, so it's a versatile option.

REC5 DC/DC-Converter Data Sheet
