RP08-2405SAW, Recom RP08 AW DC-DC Converter, 5V dc/ 1.6A Output, 9 → 36 V dc Input, 8W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

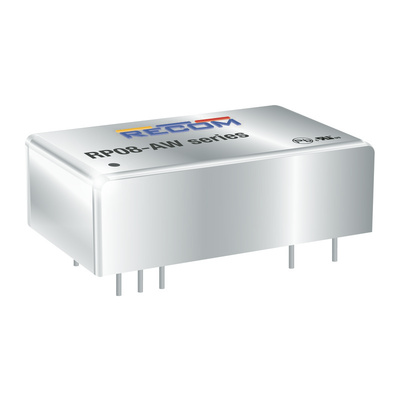

Recom 8W Single/Dual Output Regulated Isolated DC-DC Converter - RP08-AW Series

4:1 wide input voltage range
Regulated outputs
1.6kVdc isolation
Pi input filter
Over-voltage, under-voltage, over-load and short circuit protection
Five-sided shield
Standard DIP24 package
Efficiency up to 87%
Industry standard pinout

Note

MTBF to BELLCORE TR-NWT-000332.
Operating temperature range is with derating.

Standards

UL-60950-1

Approvals

UL recognised

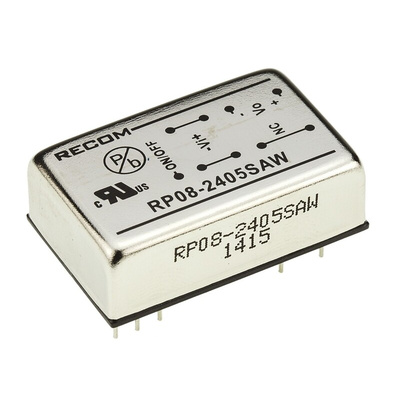

RECOM DC-DC Converter, 1 Output, 9 to 36V DC Input Voltage - RP08 AW Series - RP08-2405SAW

Looking to regulate your DC-powered equipment? Set your sights on this DC-DC converter from RECOM. When it receives an input voltage supply range between 9V and 36V DC, it steps it down to a safe and smooth output voltage level of 5V DC. As it also puts a protective isolating barrier between the input and output voltage supply, you can be sure electrical hazards are banished from your circuits. The unit's non-conductive plastic underside serves as a solid base that keeps it grounded and helps prevents electric shocks, letting you handle it safely.

• Mean time between failures of 2,350,000 hours for reliable long-term operation
• Broad operating temperature range between -40°C and +78°C to withstand harsh industrial environments
• Continuous short-circuit protection helps prevent electric hazards
• Output voltage accuracy rating of ±1% for reliable performance

Applications

• Consumer electronics
• Manufacturing industry
• Medical devices
• Railway technology

How efficient is this converter?

This DC-DC converter has an efficiency rating of 87% so you can rest assured that there'll be minimal energy wasted as heat during the conversion process.

What's this DC-DC converter made from?

The housing of this converter is made from nickel-coated copper that has high electrical conductivity and stands up to corrosion.
