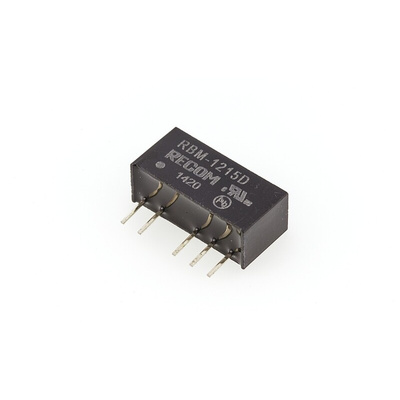

RBM-1215D, Recom RBM DC-DC Converter, ±15V dc/ ±33mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

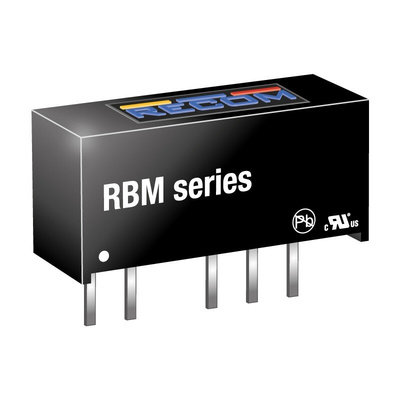

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RBM Series

Micro size SIP6 package
3kVdc isolation
UL 94V-0 package material
Industry standard pinout
Efficiency at full load up to 80%
Full rated power can be taken from one output

Note

Operating temperature is without derating.

Standards

EN60950-1, EN60601-1

RECOM DC-DC Converter, 1-Second Short Circuit Protection, 12V DC Nominal Input - RBM Series - RBM-1215D

Effectively control the power supply to your PCB-connected components with this DC-DC converter from RECOM. It steps up input voltages ranging from 10.8 to 13.2V DC to a stable 15V DC output that your devices can safely handle. The unit solders directly onto your PCB, giving you a permanent connection. Its thermoplastic housing is durable and insulated to protect you from electric shocks, ensuring safe operation. As the device creates a barrier between the input and output and with a 3kV isolation voltage, it prevents damage to your components caused by sudden voltage inrushes.

Features & Benefits

• Efficiency of up to 84% for increased productivity
• Low output current rating of ±33mA for energy efficiency and low heat dissipation
• Light weight of 1.3g puts minimal pressure on your PCB
• Mean time between failures of 1,012,000 hours at +25°C for reliable long-term operation

Applications

• Laptop and desktop computers
• Printers and scanners
• Game consoles

What's the maximum capacitive load of this DC-DC converter

The maximum capacitive load of this device is ±220μF. This is the highest load under which the converter can start up in less than a second without suffering damage.
