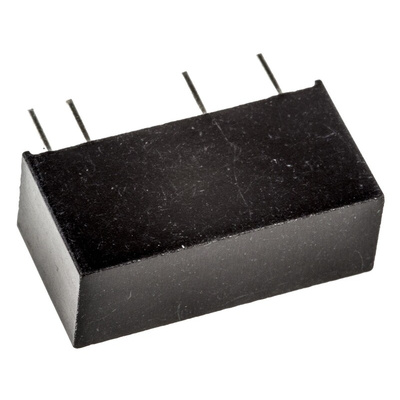

RP-1505S, Recom RP DC-DC Converter, 5V dc/ 200mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 10pF Maximum Isolation Capacitance, 1 Second Short-Circuit Protection - RP Series - RP-1505S

Don't let an erratic power supply trip up your PCB-linked components. Take control of your output with this DC-DC converter from RECOM. It steps down 15V inputs to deliver a balanced 5V voltage for parts like sensors and LEDs. To demonstrate that big things come in small packages, the unit measures just 10.2 (D) x 19.65 (L) x 7.05mm (W). You'll have no problem slotting it into a busy setup. It puts up an isolation barrier of up to 5.2kV DC between the supply and output to prevent damage to your appliances caused by power spikes.

Features & Benefits

• Pin-compatible with converters in the RH and RK series, making it a versatile choice
• Mean time between failures of 928,000 hours at +25°C assures you of long-term performance
• Can withstand short circuits of up to one second without suffering damage

Applications

• IGBT drivers
• Automotive equipment
• Medical monitors
• Measurement and instrumentation devices

How do I mount this converter?

This unit is designed to be soldered directly onto your PCB. It comes with pins for through-hole mounting to provide a firm, vibration-proof connection.
