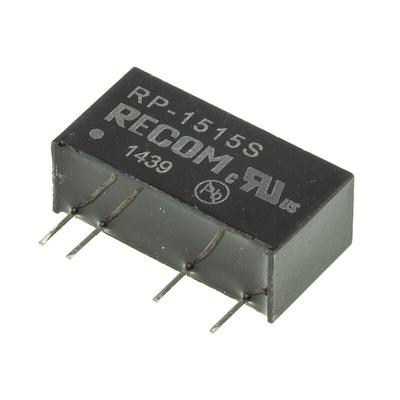

RP-1515S, Recom RP DC-DC Converter, 15V dc/ 66mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 470μF Maximum Capacitive Load, 5.2kV Isolation Voltage - RP Series - RP-1515S

Turn to this RECOM DC-DC converter for safe power delivery to your PCB-linked parts. It cleans ripple from supply signals ranging between 13.5 and 16.5V DC, giving a balanced and noiseless 15V DC output that's useful for devices like relays. For extra safety, it erects a 5.2kV isolation voltage barrier between the input and output to reduce the risk of electrical hazards caused by sudden power spikes. As this unit is designed for through-hole mounting on your circuit board, you can be sure of a secure connection, even on moving machinery.

Features & Benefits

• Comes in a tube of 25, providing enough for multiple jobs
• Compact dimensions of 10.2 (D) x 19.65 (L) x 7.05mm (W) make it a space-efficient choice for busy setups
• Pin-compatible with converters in the RH and RK series, making it a versatile power control solution

Applications

• Automotive industry
• Medical applications
• Process and packaging plants
• Gaming consoles

Can I use this converter for IGBT applications?

Yes, thanks to its high isolation voltage capacity, you can use this unit for transistor applications such as inductor heating that are prone to fluctuation.

Datasheet
