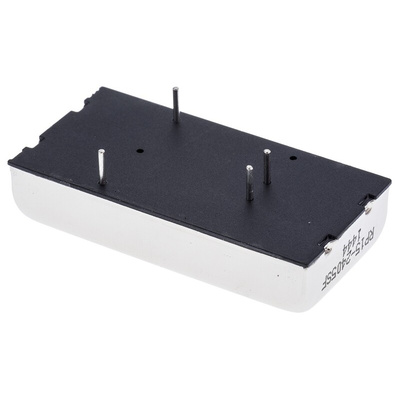

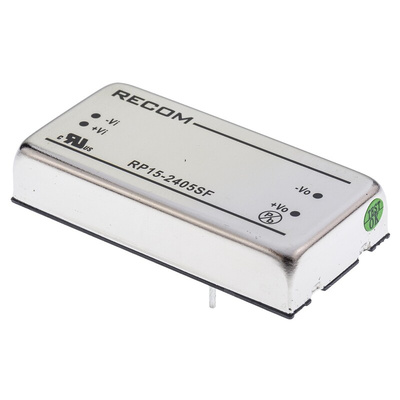

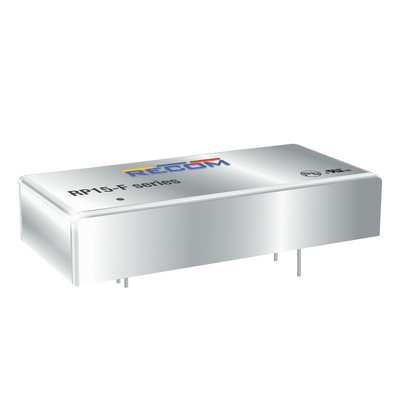

RP15-2405SF, Recom RP15 F DC-DC Converter, 5V dc/ 3A Output, 18 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, Short-Circuit Protection, 1.6kV DC Isolation - RP15-F Series - RP15-2405SF

When the voltage difference between your primary and secondary circuits creates a clash, use this DC-DC converter from RECOM. It takes a nominal 24V DC input and lowers it to 5V DC to match the typical voltage needs of supply and control circuits. As it's a regulated type, you get a constant output even if there are power fluctuations. This 2:1 converter has a wide input range between 18 and 36V DC, enabling it to work with the varying voltages of specialist industrial and telecoms equipment. An isolation voltage of 1.6kV DC ensures your two circuits are electrically separated, keeping people and devices safe.

Features & Benefits

• Wide operating temperature range between -40°C and +85°C, to handle harsh conditions
• Resistant to shock and vibration for use in industrial environments
• Through-hole pins give you a straightforward mounting method
• Efficiency up to 84% means it won't waste power through heat

Applications

• Telecommunications networks
• Transportation
• Medical centres
• Military sector

What protections does this DC-DC converter have?

This DC-DC converter has a six-sided, continuous shield to reduce radiated EMI. Its overload, overvoltage and short-circuit protections are on hand to prevent electrical damage to downstream kit.
