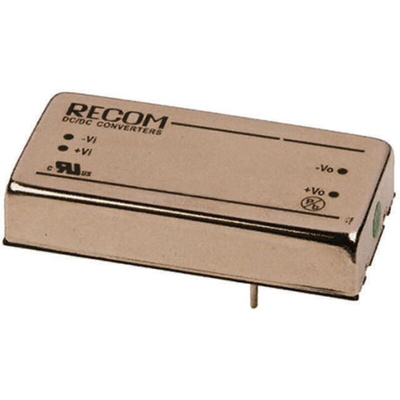

RP15-2412SF, Recom RP15 F DC-DC Converter, 12V dc/ 1.25A Output, 18 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Recom 15W Single/Dual Output Regulated Isolated DC-DC Converter - RP15-F Series

2:1 wide input voltage range
Regulated outputs
1.6kVdc isolation
Pi input filter
Fixed operating frequency
Six-sided continuous shield
Over-voltage, under-voltage, over-load and short circuit protection
Standard 2"x1" package
Efficiency up to 86%

Note

MTBF to BELLCORE TR-NWT-000332.
Operating temperature range is with derating.

Standards

UL-60950-1

Approvals

UL recognised

RECOM DC-DC Converter, 18 to 36V DC Input Voltage, 12V DC Output Voltage - RP15-F Series - RP15-2412SF

Regulate voltages in your equipment with this DC-DC converter from RECOM. It accepts input voltages between 18 and 36V DC and reduces them to 12V DC to safely power a circuit. The unit features line and load regulation of ±1% to ensure a high degree of accuracy. A flame-retardant enclosure helps to prevent the spread of flames in the event of a fire, and short-circuit protection ensures greater electrical safety. Thanks to its MTBF of 2,041,000 hours at +25°C, this is a long-lasting choice that won't need to be replaced frequently.

Features & Benefits

• Wide operating temperature range between -40°C and +85°C for use in demanding environments
• Efficiency of 85% for minimal power loss and enhanced productivity
• Isolated circuits for improved electrical safety
• Light weight of 27g ensures minimal strain on your equipment

Applications

• Telecommunications and computing
• Industrial networks
• Military and defence industry
• Medical equipment

How do I mount this DC-DC converter?

This DC-DC converter comes with pins for through-hole mounting, making it simple to mount securely on a PCB.

RP15-F DC/DC-Converter Data Sheet
