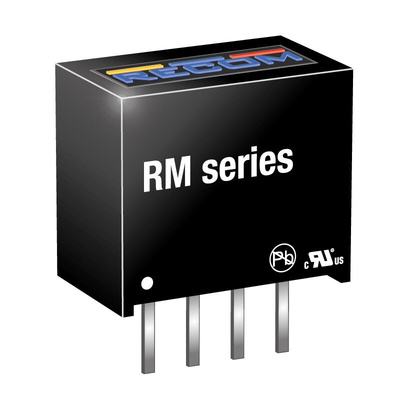

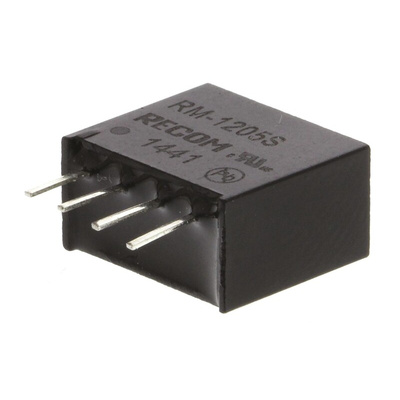

RM-1205S, Recom RM DC-DC Converter, 5V dc/ 50mA Output, 10.8 → 13.2 V dc Input, 0.25W, Through Hole, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 470μF Maximum Capacitive Load, 66 to 72% Efficiency - RM Series - RM-1205S

Looking for a compact device to safely supply power to light loads on your circuits? Choose this DC-DC converter from RECOM. With dimensions of 10.2 (L) x 11.5 (W) x 6mm (D), it's suitable for installation in confined spaces. The converter works by stepping down an input voltage of 12V to a stable and noiseless 5V output that's safe for your low-voltage devices. Thanks to the industry-standard pin-outs, you can install it directly on your PCB via through-hole mounting, giving you stable signal transmission.

Features & Benefits

• Isolation voltage of 1kV DC to prevent damage from high inrush currents
• Thermoplastic housing offers durability and insulation against electric shocks during operation
• Wide operating temperature range between -40°C and +85°C for use in challenging settings
• Mean time between failures of 1,327,000 hours for reliable long-term use

Applications

• PC motherboards
• CCTV and security systems
• Consumer electronics

Is this DC-DC converter flame-resistant?

Yes, this unit stops burning in 10 seconds when a fire occurs, so it can help to prevent the spread of flames.

How efficient is this converter?

This converter functions at up to 72% efficiency, meaning you get optimal performance with minimal energy loss.

Datasheet
